SMD03M Reseller Resources

Title Surface Mount Tweezer Probes for Atlas LCR Passive Component Analyser with 2mm connectors (Part number SMD03M)

EAN 0712201377767

Catalogue copy Superb quality tweezers for use with the Atlas LCR Passive Component Analyser (with 2mm connectors). The gold plated tips are suitable for testing a very wide range of surface mount components down to 0402 or even smaller, tips can separate enough for testing large tantalums too. Fitted with high quality gold plated 2mm sockets. Cable is flexible RG574 style coax. please note that these tweezers are only compatible with 2mm connectors. Not designed for in-circuit use or high voltage use.

Key Features

  • Ideal for testing loose SMD parts, especially unmarked capacitors and inductors.
  • Gold plated tips ensure good contact conductivity and long life.
  • Parasitic inductance, capacitance and resistance easily nulled by the Atlas LCR Probe Compensation feature.

Specification Summary
Body length 120mm (4.7")
Tip length 3mm (0.1")
Tip width 1.35mm (0.05")
Cable length 120-140mm (4.7"-5.5")
Max tip separation 15mm approx (0.6")

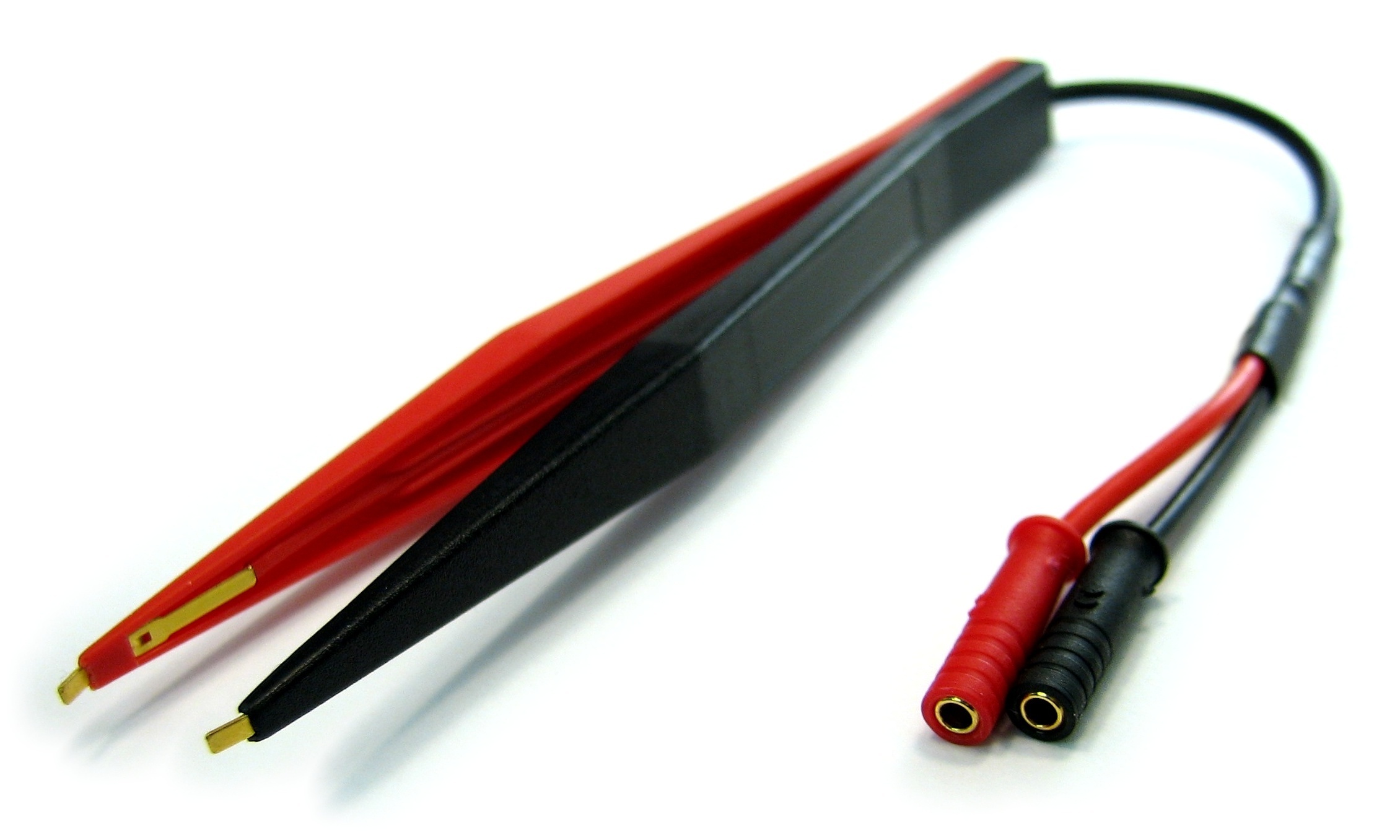

Photography (click to enlarge)

Other Downloads smd03m-user-guide-en.pdf

Dimensions per product (excluding leads) 125 x 20 x 10 mm (4.9" x 0.8" x 0.4")
Dimensions per product (packaged) 150 x 90 x 20 mm (5.9" x 3.5" x 0.8")

Weight per product (nett) 0.010kg
Weight per product (packaged inc docs) 0.016kg

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 9020 00 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
