Title Probe Pack for Atlas LCR Passive Component Analyser with 2mm connectors (Part number PTPM)

EAN 0712201377682

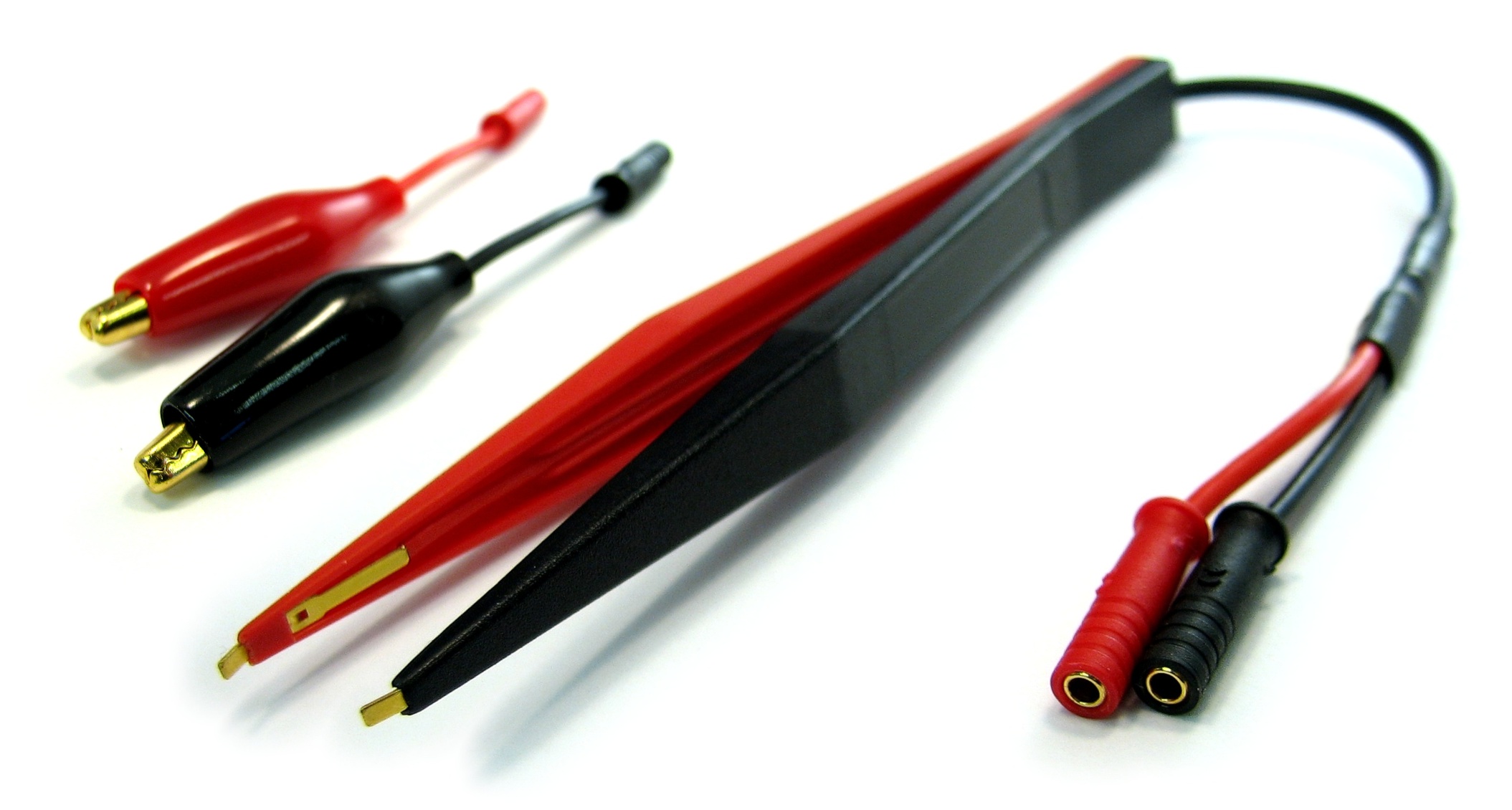

Catalogue copy Premium quality gold plated croc clips and surface mount tweezer probes for use with the Atlas LCR Passive Component Analyser (with 2mm connectors).

Key Features

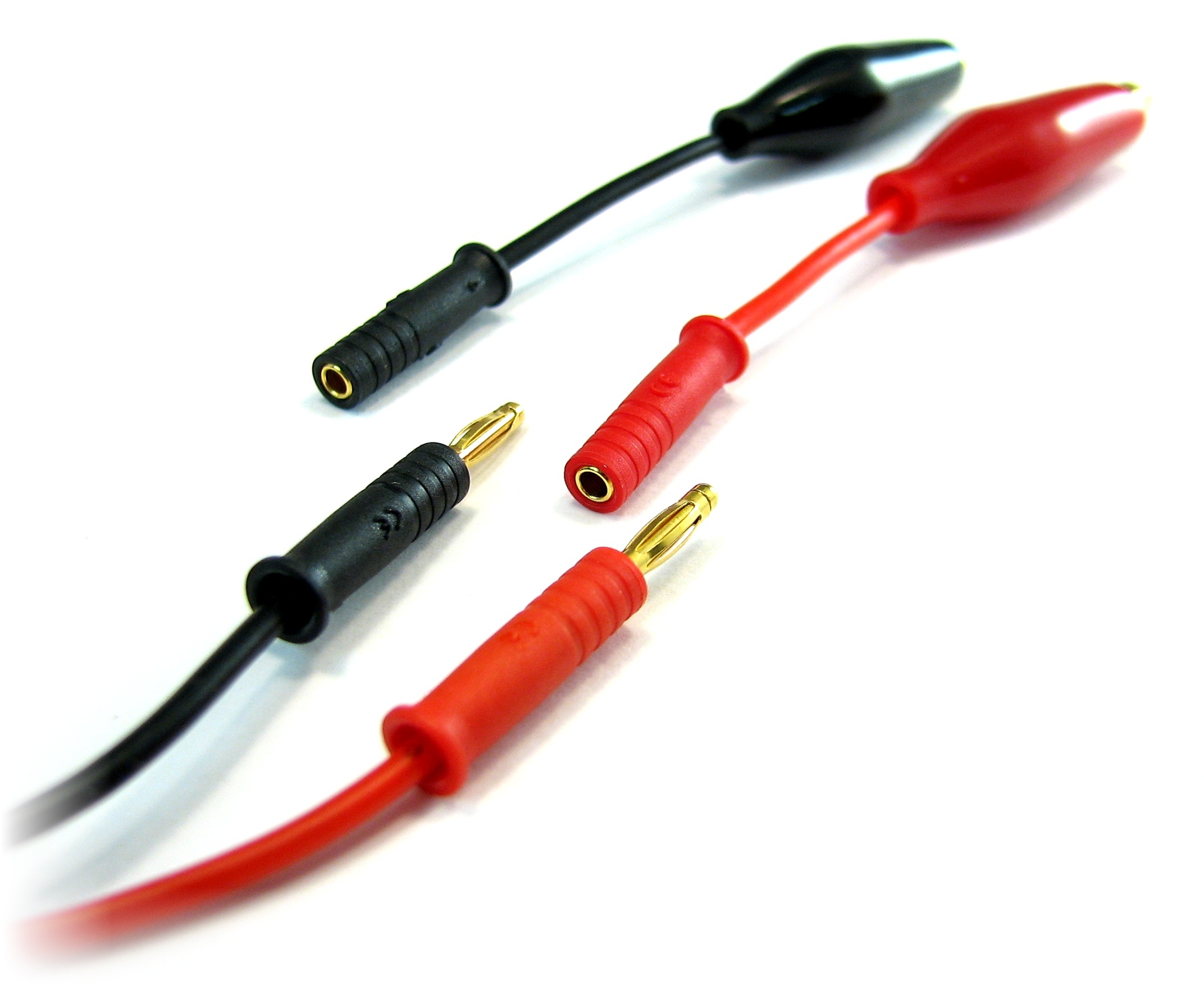

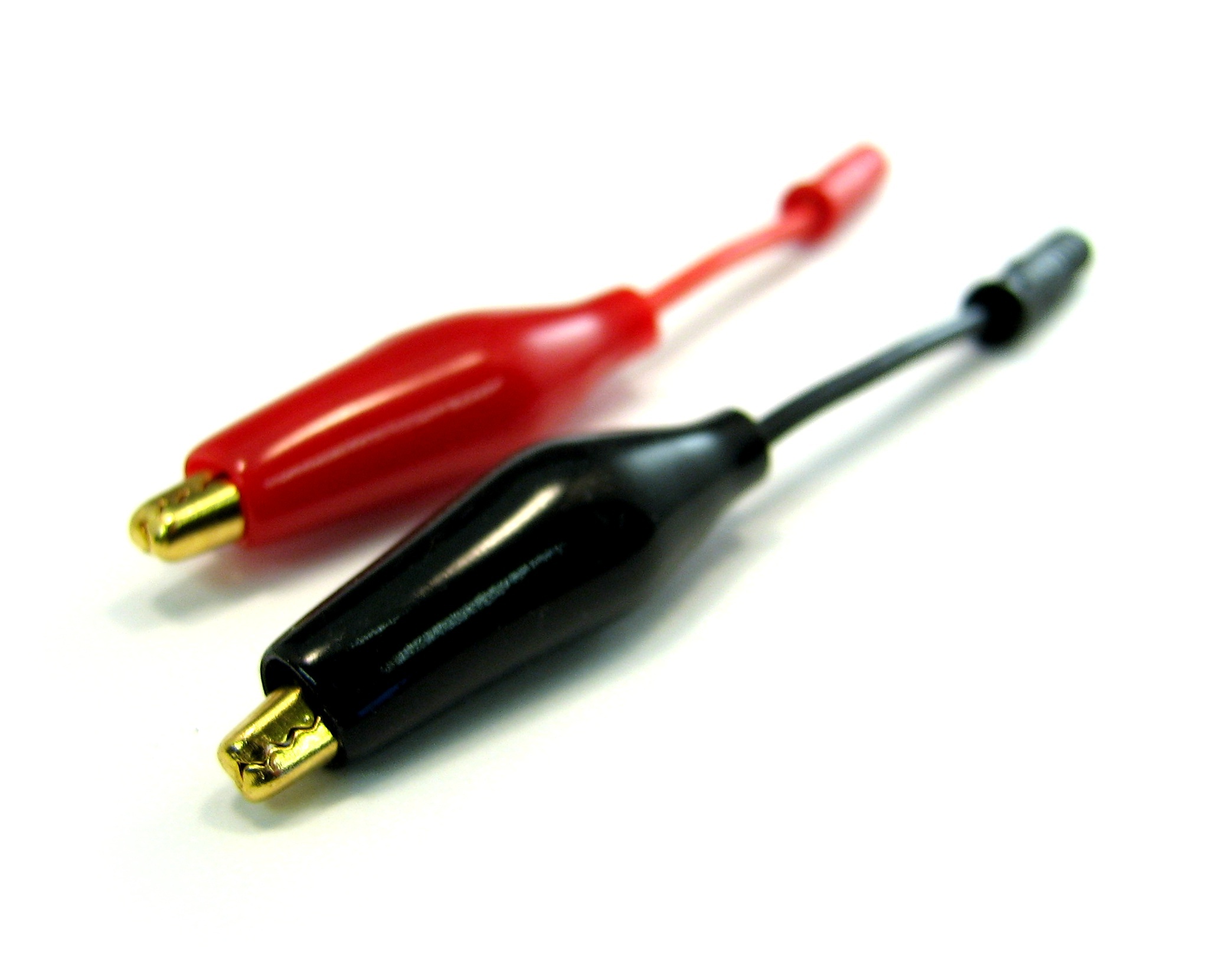

  • Crocs Ideal for testing leaded components or large components.
  • Gold plated crocs ensure good contact conductivity and long life.

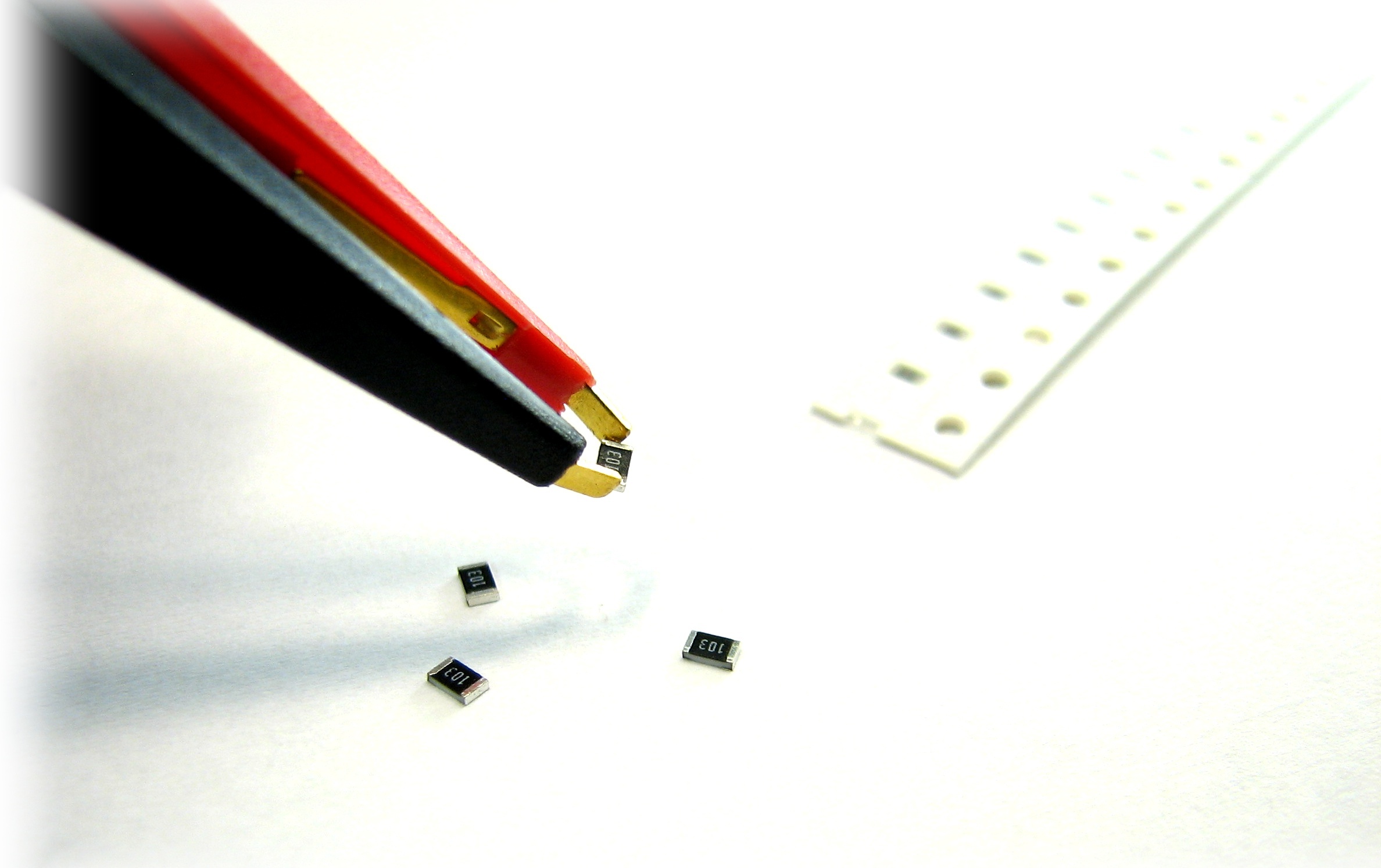

  • Surface mount tweezer probes suited to loose SMDs, even down to 0402 and smaller.
  • Parasitic inductance, capacitance and resistance easily nulled by the Atlas LCR Probe Compensation feature.

Specification Summary Crocs:
Body length 40mm (1.6")
Cable length 35-45mm (1.4"-1.8")

Tweezers:

Body length 120mm (4.7")
Tip length 3mm (0.1")
Tip width 1.35mm (0.05")
Cable length 120-140mm (4.7"-5.5")
Max tip separation 15mm approx (0.6")

Photography (click to enlarge)


Other Downloads ptpm-user-guide-en.pdf
ptpm-user-guide-de.pdf
  ptpm-user-guide-it.pdf
  ptpm-user-guide-fr.pdf

Dimensions per product (excluding leads) Croc: 40 x 13 x 11 mm (1.6" x 0.5" x 0.4")
Tweezers: 125 x 20 x 10 mm (4.9" x 0.8" x 0.4")
Dimensions per product (packaged) 150 x 90 x 30 mm (5.9" x 3.5" x 1.2")

Weight per product (nett) 0.020kg
Weight per product (packaged inc docs) 0.030kg

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 9020 00 GB

Fundamental Materials Plastic and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
