PCA23 Reseller Resources

Title Peak Component Adapter for SOT23 / SOT23 Test Adapter (Model PCA23)

EAN 0700153222914

Catalogue copy Test SOT23 Surface Mount Components with your Peak tester or Multimeter

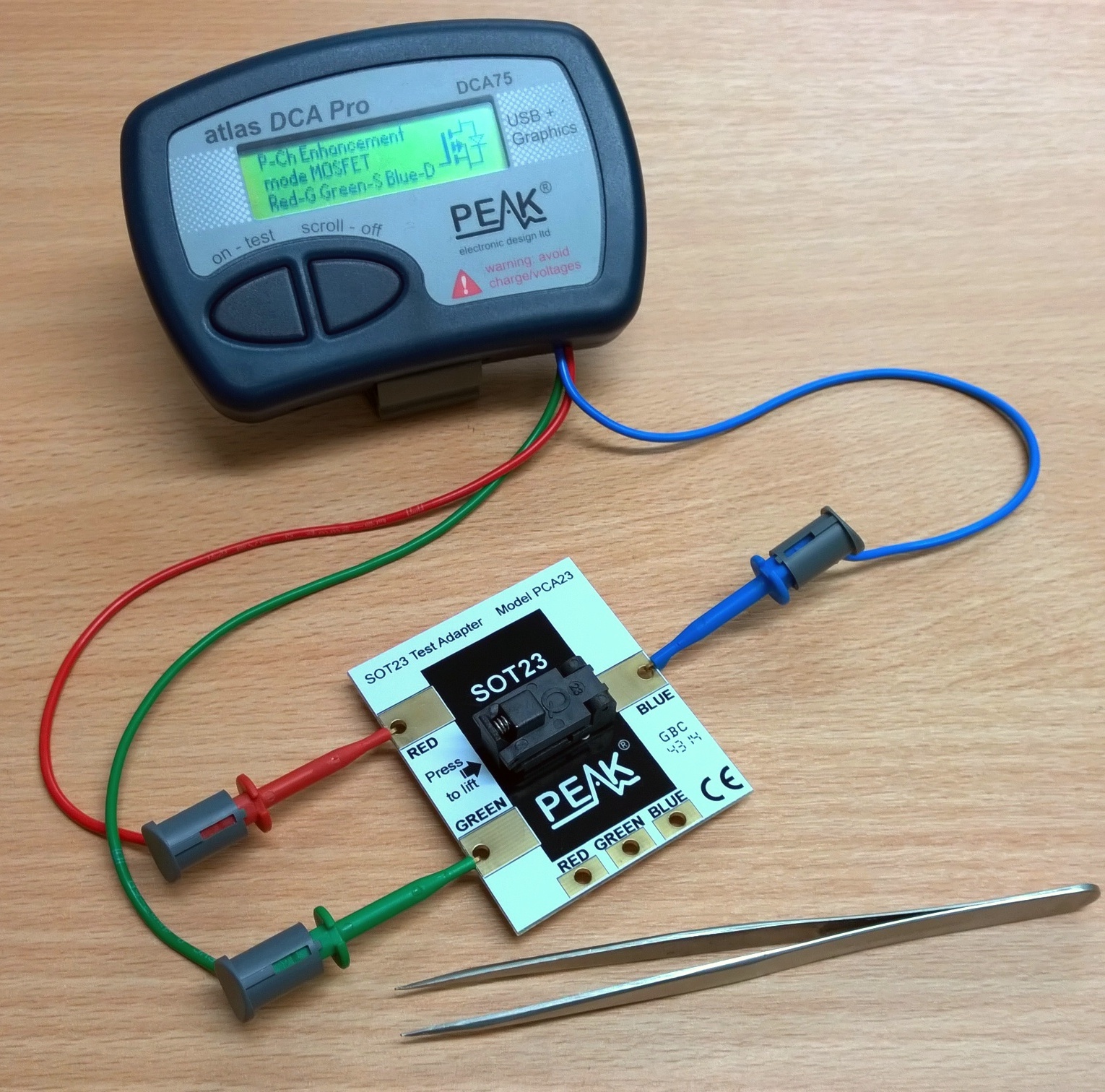

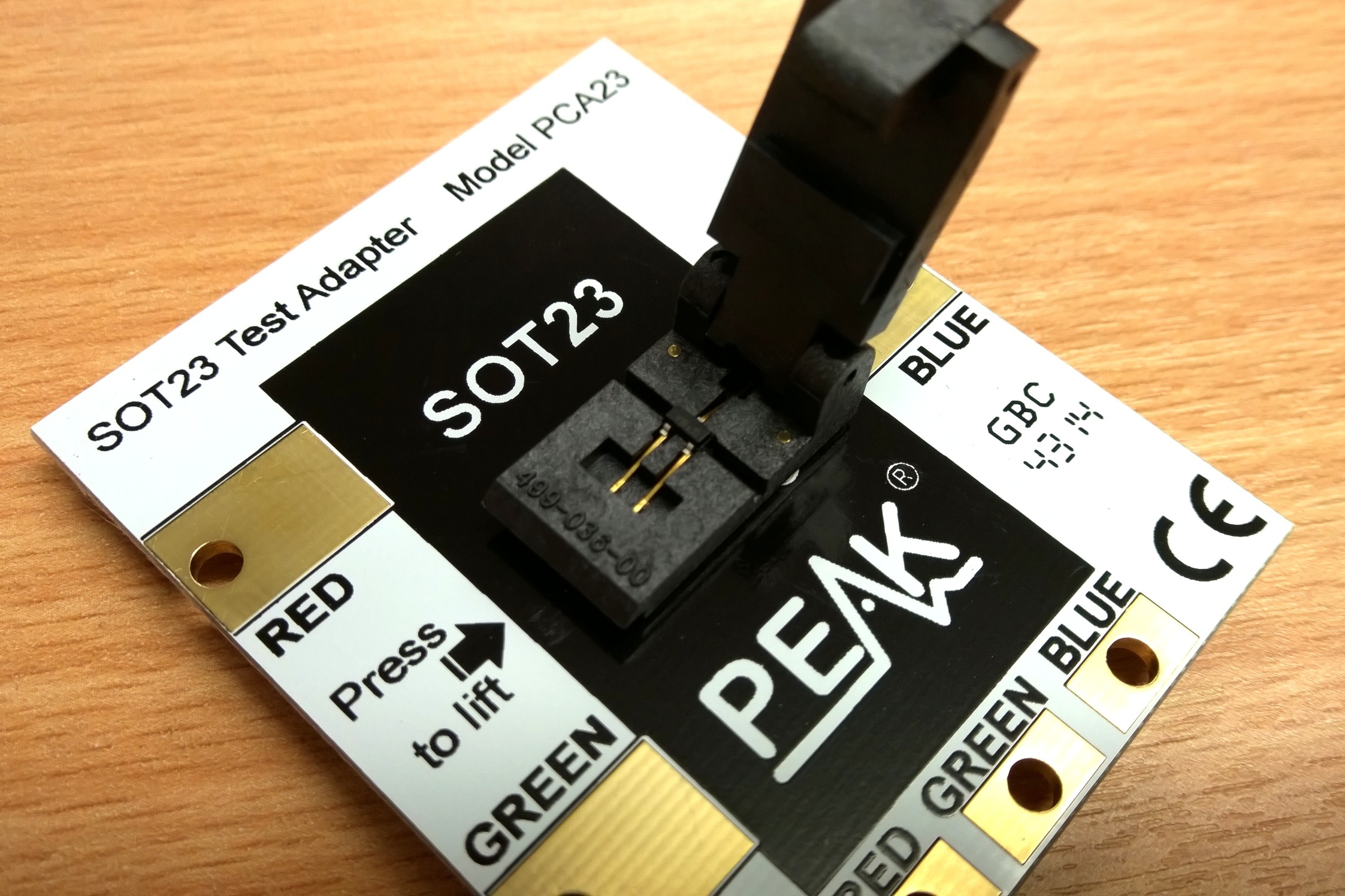

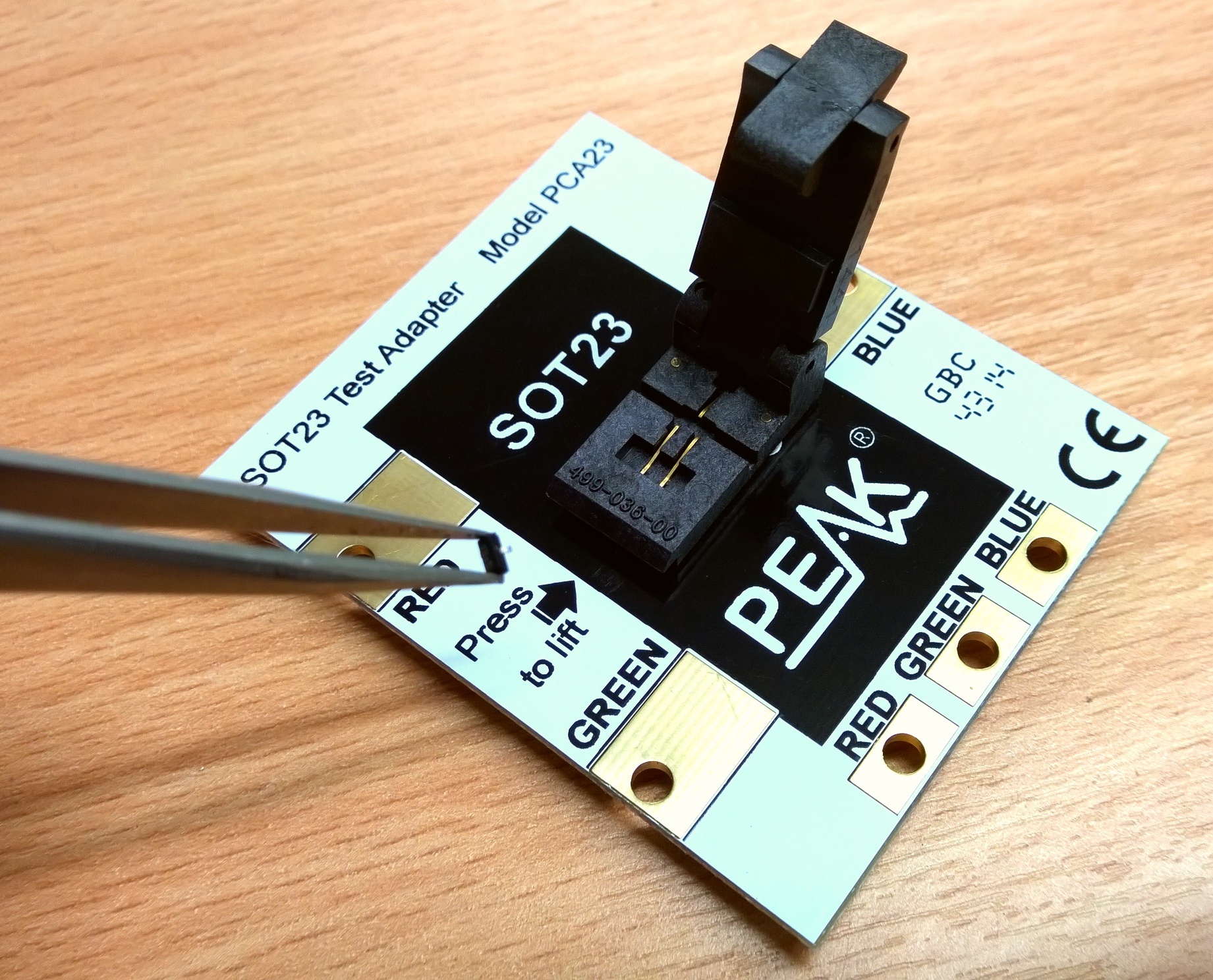

This beautiful SOT23 test adapter is designed to complement your DCA55 or your DCA75 (or any other semiconductor tester). It's extremely easy to use thanks to the special spring-loaded SOT23 socket assembly. Your SOT23 part is gently and securely held against gold plated sprung contacts with a carefully controlled contact force.

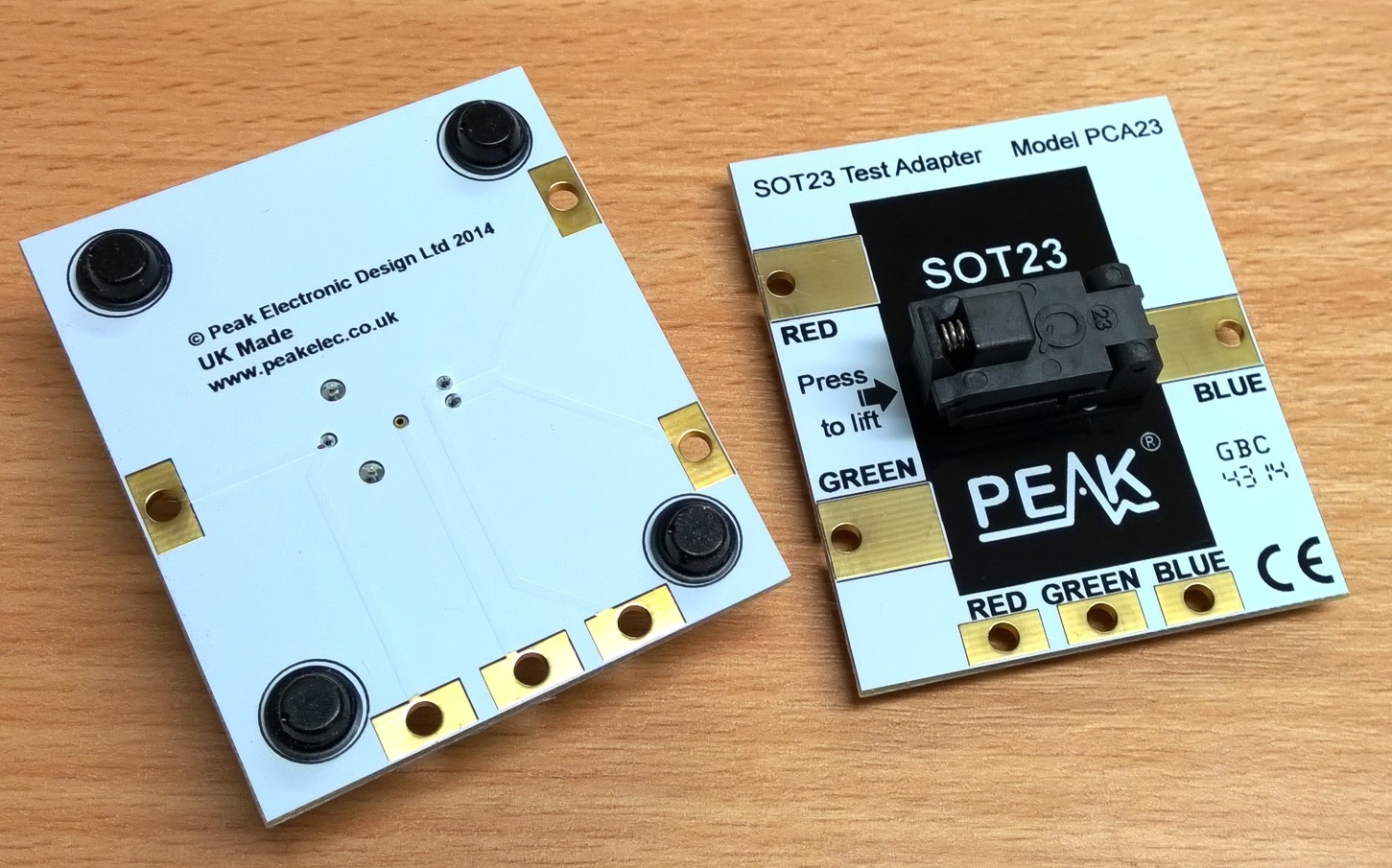

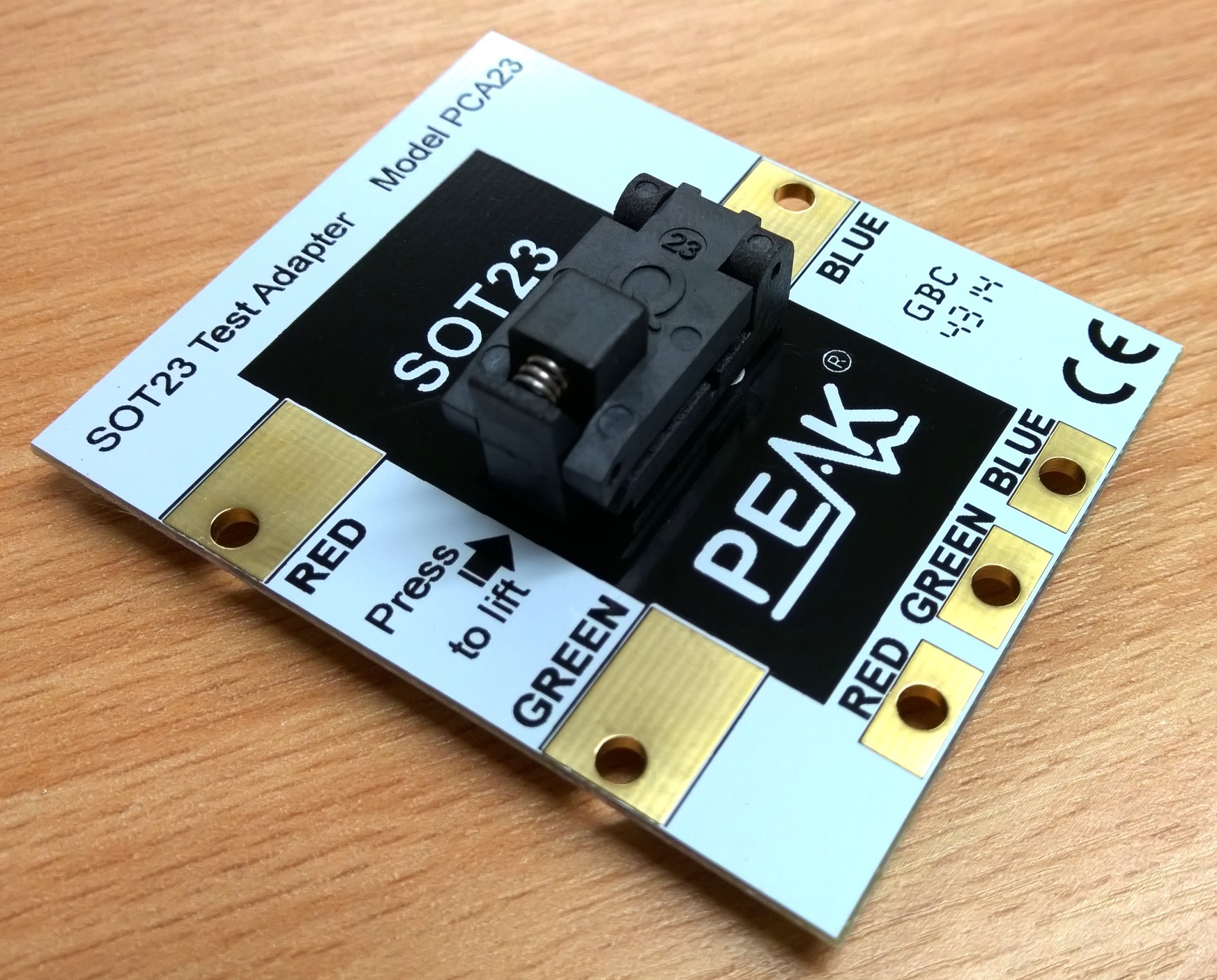

The adapter is designed to look like a giant SOT23 part, so it's easy to visualise the pinout of the part inside when using the DCA55 or DCA75.

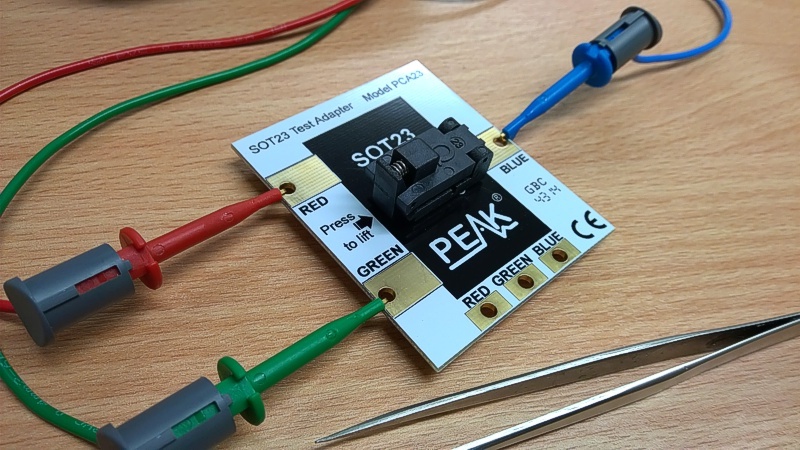

The unit is supported on 4 non-slip feet which also serves to keep the unit slightly raised from your work surface allowing for easier connections using micro-hooks or croc clips.

The large area gold plated pads are also great for multimeter prods.


Specification Summary at 20-25°C (68°-77F) unless otherwise specified.
Summary Specifications
Suitability SOT23 3 pins
Max current capability 100mA
Max voltage capability (1) 50Vac, 75Vdc
SOT23 contact material Gold flash
SOT23 contact resistance <10mΩ
Test pad contact material Gold flash
Pad-pad track resistance (2) <20mΩ
Temperature Range (3) -34°C to 65°C
-55°C to 155°C
Weight 13 grams
Dimensions 50 x 60 x 17mm

Notes:
(1) To comply with Low Voltage Directive 2006/95/EC.
(2) Measured between both "red" pads, or both "green" pads, or both "blue" pads.
(3) Temperature range of -34°C to 65°C limited by polyethylene feet. Limit of the rest of the assembly is -55°C to 155°C.


Photography (click to enlarge)



YouTube Videos


Other Downloads


Dimensions per product 50 x 60 x 17 mm (2.0" x 2.4" x 0.7")
Dimensions per product (packaged) 94 x 71 x 40 mm (3.7" x 2.8" x 1.6")

Weight per product (nett) 0.013kg (0.5oz)
Weight per product (packaged inc docs) 0.031kg (1.1oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 9020 00 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
