ESR Test Prods Reseller Resources | ||||
Title | ESR Test Prods (Model ETP85) | |||
EAN | 0712201377729 | |||

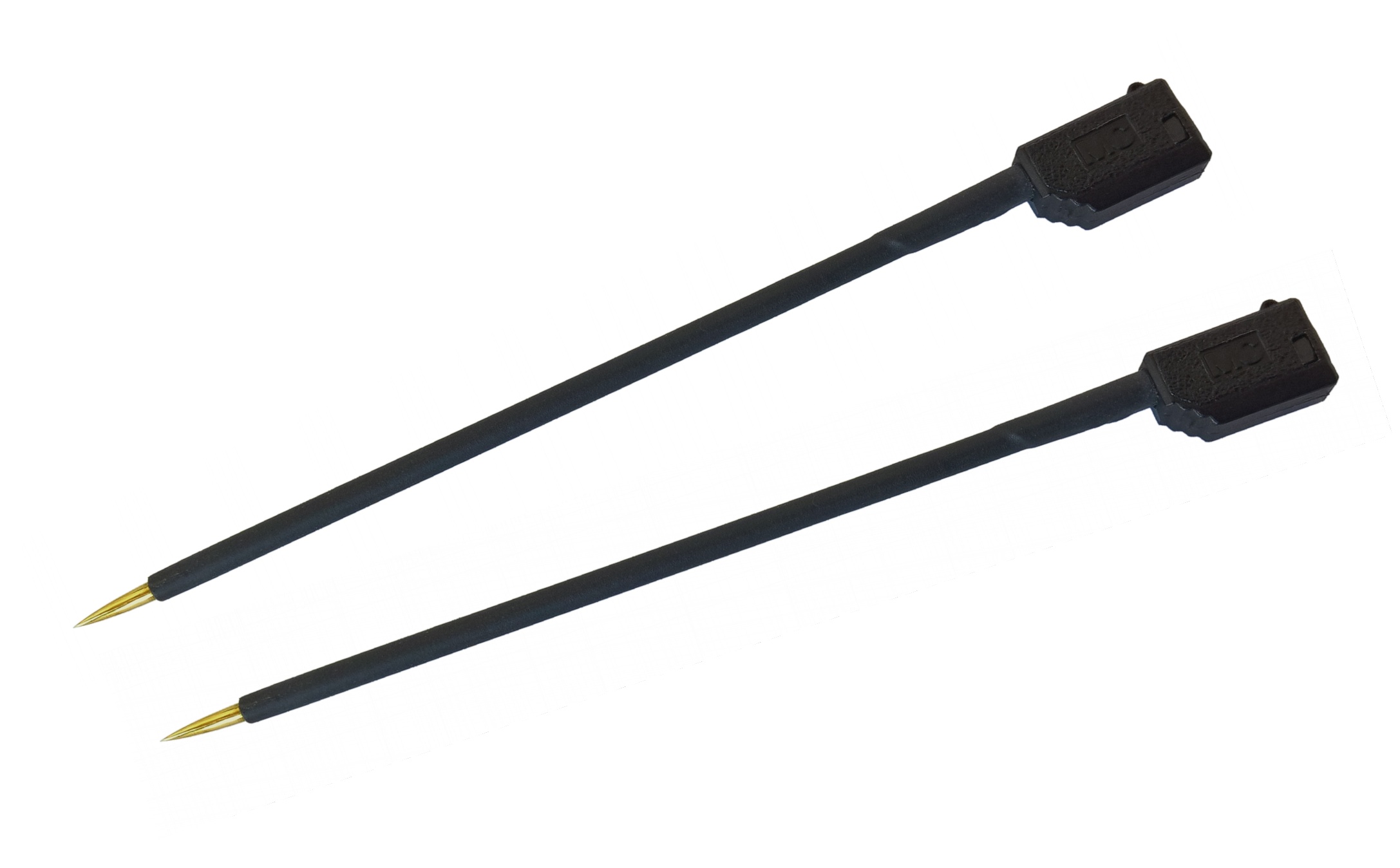

Catalogue copy | A pair of stunning gold
plated prods, primarily designed for the Atlas ESR and Atlas ESR PLUS.
These gold prods feature our new standard 2mm sockets, allowing them to
be fitted to industry standard 2mm banana plugs. Each prod is 86mm long and is fully insulated except for the 5mm sharp gold tip. The slender design is ideal for reaching tricky parts of equipment whilst maintaining maximum safety and control. Please note, your ESR unit must be fitted with 2mm plugs to be used with these probes. These probes are ONLY suitable for ESR units with firmware version 4.1 or later. This is because firmware version 4.1 introduced an enhanced "charged capacitor" detection method that is required to handle the relatively short connection periods that may be encountered. |
|||
Specification Summary | Probe material: Gold
flashed brass. Overall length: 86mm (3.4") Exposed shaft length: 5mm (0.3") Exposed shaft diameter: 1.4mm (55mil) Tip diameter: <0.27mm (<11mil) Socket diameter: 2.0mm, suitable for 2mm standard plugs. (78.7mil) Tip to socket resistance: <12mΩ |
|||
Photography (click to enlarge) | ||||
Other Downloads | ||||
Dimensions per product (1 probe) | 86mm x 5mm x 8mm (3.4" x 0.2" x 0.3") | |||
Dimensions per product (packaged) | 160mm x 100mm x 9mm (6.3" x 3.9" x 0.4") | |||
Weight per product of 2 probes (nett) | 0.014kg (0.50oz) | |||
Weight per product (packaged) | 0.017kg (0.60oz) | |||
Bulk order multiple | 20, 80 | |||
Harmonisation / Commodity / Tariff Code | 9030 9020 00 GB | |||
Fundamental Materials | Plastic and metal | |||
Country of manufacture | Germany | |||
Certification | CE, WEEE, ROHS | |||
Keywords | peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, ESR, ESR60, ESR70, prod, prods, probes, test probe, test probes, Atlas ESR, Capacitor probes, capacitor tester, ESR tester, capacitor analyser, capacitor analyzer. | |||
Related products | SMD03M, CRC01EM, ESRLHP2, ESR60, ESR70, ESRNEEDLES |
