ESR60 Reseller Resources

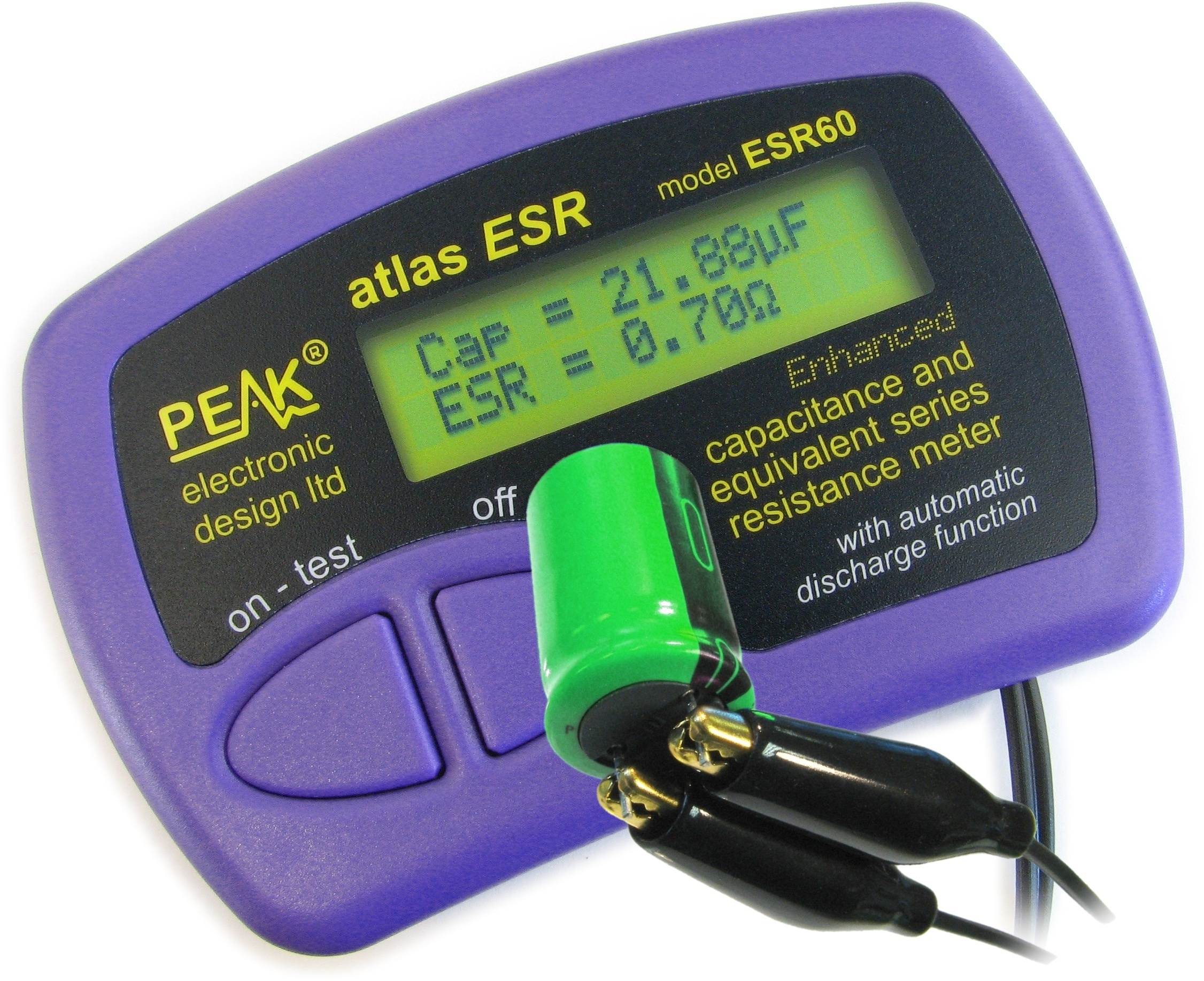

Title Atlas ESR - Capacitance and Equivalent Series Resistance Meter (Model ESR60)

EAN 5026686029406

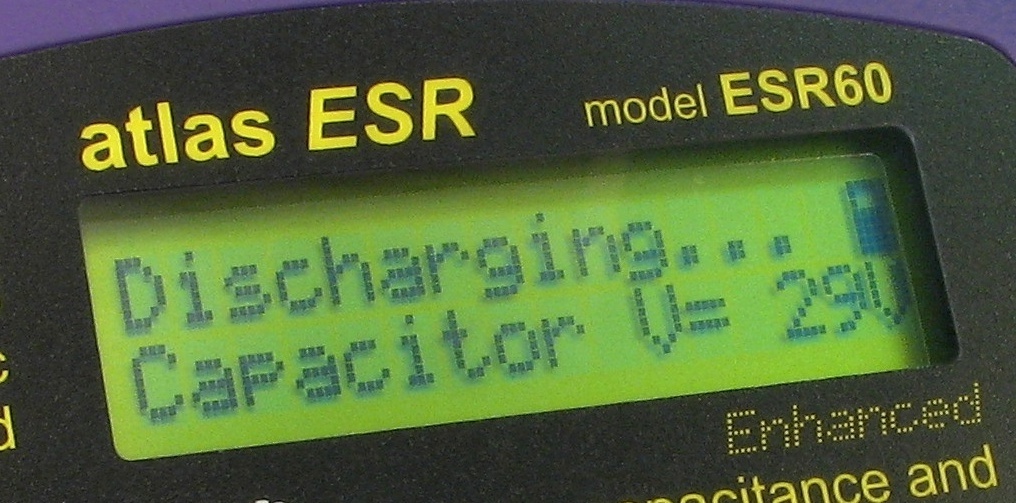

Catalogue copy The Atlas ESR measures both the capacitance and Equivalent Series Resistance (ESR) of a capacitor. The ESR is a great indicator of the capacitor's condition, as a capacitor fails, it's ESR rises. This advanced meter can measure ESR even in-circuit. It will measure capacitance too if the capacitor under test is out of circuit. A unique feature of the Atlas ESR is the ability to detect if the capacitor is charged, if the capacitor is charged then the Atlas ESR will gracefully discharge the capacitor using a constant power algorithm designed to prevent nasty discharge currents. The Atlas ESR will automatically detect when the test clips are applied to a capacitor and start it's analysis, great when testing many capacitors. Capacitance measurement range from 1uF to 22,000uF, ESR measurement range from 0.01 Ohms to 20.0 Ohms. Minimum ESR resolution is 0.01 Ohms. Can also be used for short circuit tracing. ESR test frequency is industry standard at 100kHz. Supplied with removable gold plated croc clips. Compatible with standard 2mm connectors. Complete with battery, test leads, gold plated crocs and user guide with capacitor ESR reference chart.

Key Features:

  • Automatic capacitor discharge function.
  • Measure both capacitance and ESR (equivalent series resistance).
  • Can be used for measuring low resistances such as short tracing.
  • Capacitance range from 1uF to 22,000uF.
  • ESR range from 0.01Ω to 20.0Ω.
  • Gold plated 2mm plugs and sockets.
  • Gold plated removable croc clips.




Specification Summary at 20°C (68°F) unless otherwise specified.

Parameter

Min

Typ

Max

Note

Peak test current into S/C



±20mA

±22mA



Peak test voltage, full scale ESR



±40mV

±44mV



Peak test voltage across O/C



±2.5V

±3.0V



Capacitance measurement range

1μF



22,000μF



Capacitance accuracy

±4% ±0.2μF



ESR measurement range



20Ω / 40Ω

2

ESR resolution for ESR < 2Ω

0.01Ω



0.02Ω



ESR resolution for ESR > 2Ω

0.1Ω



0.2Ω



ESR accuracy for ESR < 2Ω

±1.5% ±0.02Ω



ESR accuracy for ESR > 2Ω

±1.5% ±0.2Ω



Abuse voltage (for C < 10μF)





±275V

3

Abuse voltage (for C > 10μF)





±50V

3

Auto-Discharge voltage limit





±50V



Battery type

MN21/GP23A 12V Alkaline



Battery voltage range

8.5V

12V





Battery voltage warning threshold



8.5V





Inactivity power-down period

30 seconds



Dimensions (excluding test leads)

103 x 70 x 20 mm





4.1" x 2.8" x 0.8"



Operating temperature range

10°C



40°C

1

  50°F   104°F

 Notes

  1. Subject to acceptable LCD visibility.

  2. Model ESR70 is capable of measuring up to 40Ω.

  3. Maximum abuse voltage rated limitation of internal protection electronics. Probes, leads and unit are not certified for high voltage use.


Photography (click to enlarge)


Other Downloads esr60_userguide_en.pdf
  esr60_datasheet_en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.5" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.163kg (5.8oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 8930 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, Atlas ESR, ESR60, ESR 60, ESR meter, capacitor meter, capacitor tester, ESR tester, capacitance meter, capacitance tester, equivalent series resistance, short circuit tester, low resistance meter, capacitor analyser, capacitor analyzer, capacitance analyser, capacitance analyzer, ESR analyser, ESR analyzer,

Related products ATC55, ATC01, GP23A, ESRLHP2, CRC01EM, ESRNEEDLES, ESRPRODS
