ESR70 Reseller Resources

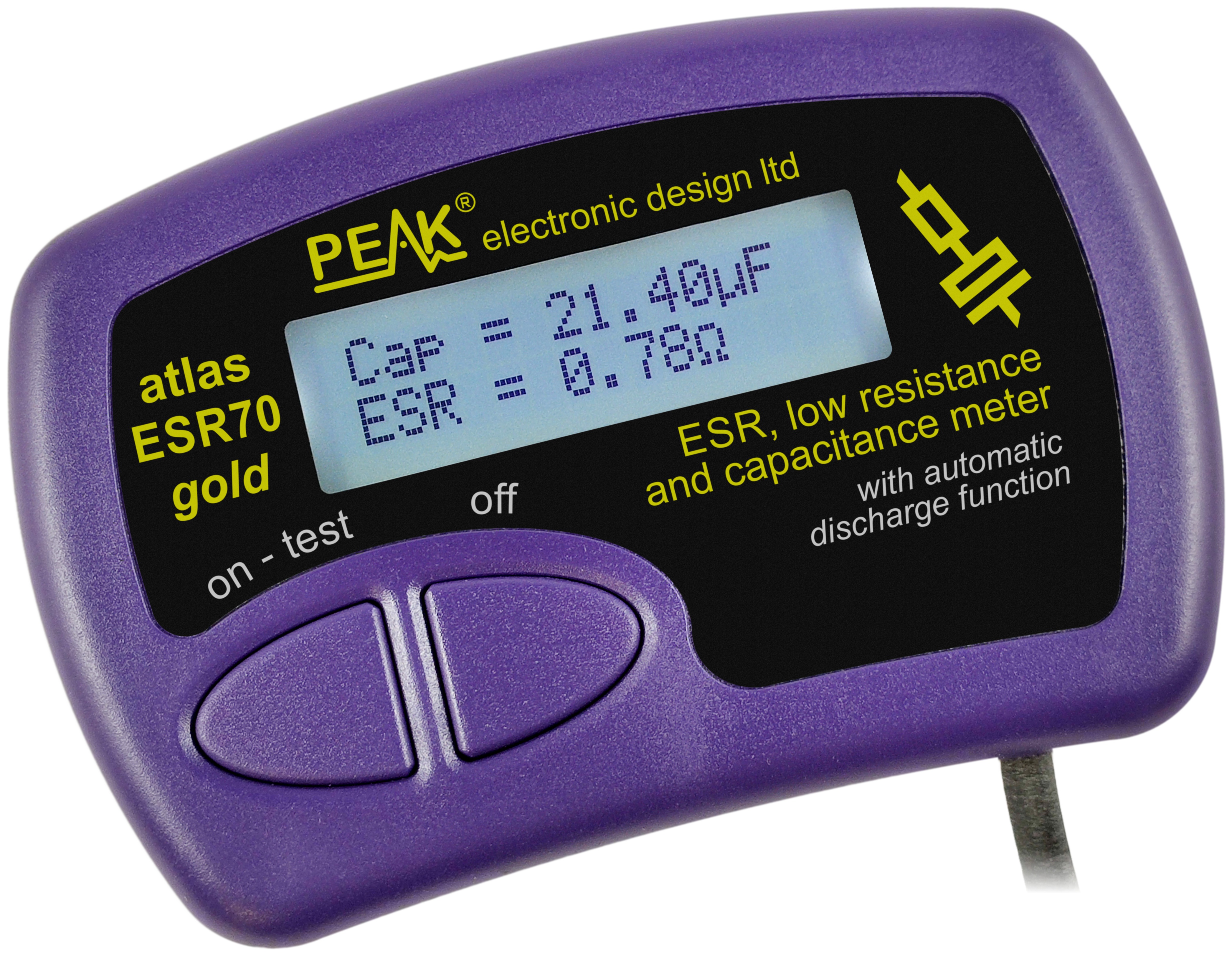

Title Atlas ESR Gold - Capacitance and Equivalent Series Resistance Meter with Audible Alerts (Model ESR70)

EAN 0700153222976

Catalogue copy The Peak Atlas ESR Gold is an enhanced version of the previous Peak Atlas ESR Plus. It provides instant measurement of a capacitor's ESR and its capacitance value. Using the supplied gold plated probes (removable), the Peak Atlas ESR Gold can measure ESR down to a resolution of 0.01Ω, up to 40Ω. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display.

• Measure ESR (even in-circuit).
• Measure capacitance (from 0.3μF to 90,000μF).
• Automatically starts analysis when the ESR70 is connected.
• Audible alerts with different tones for various ESR levels.
• ESR resolution down to 0.01Ω.
• Polarity free due to bi-directional low voltage (500mV) test span.
• Low DC resistance checking measurement (even in-circuit).

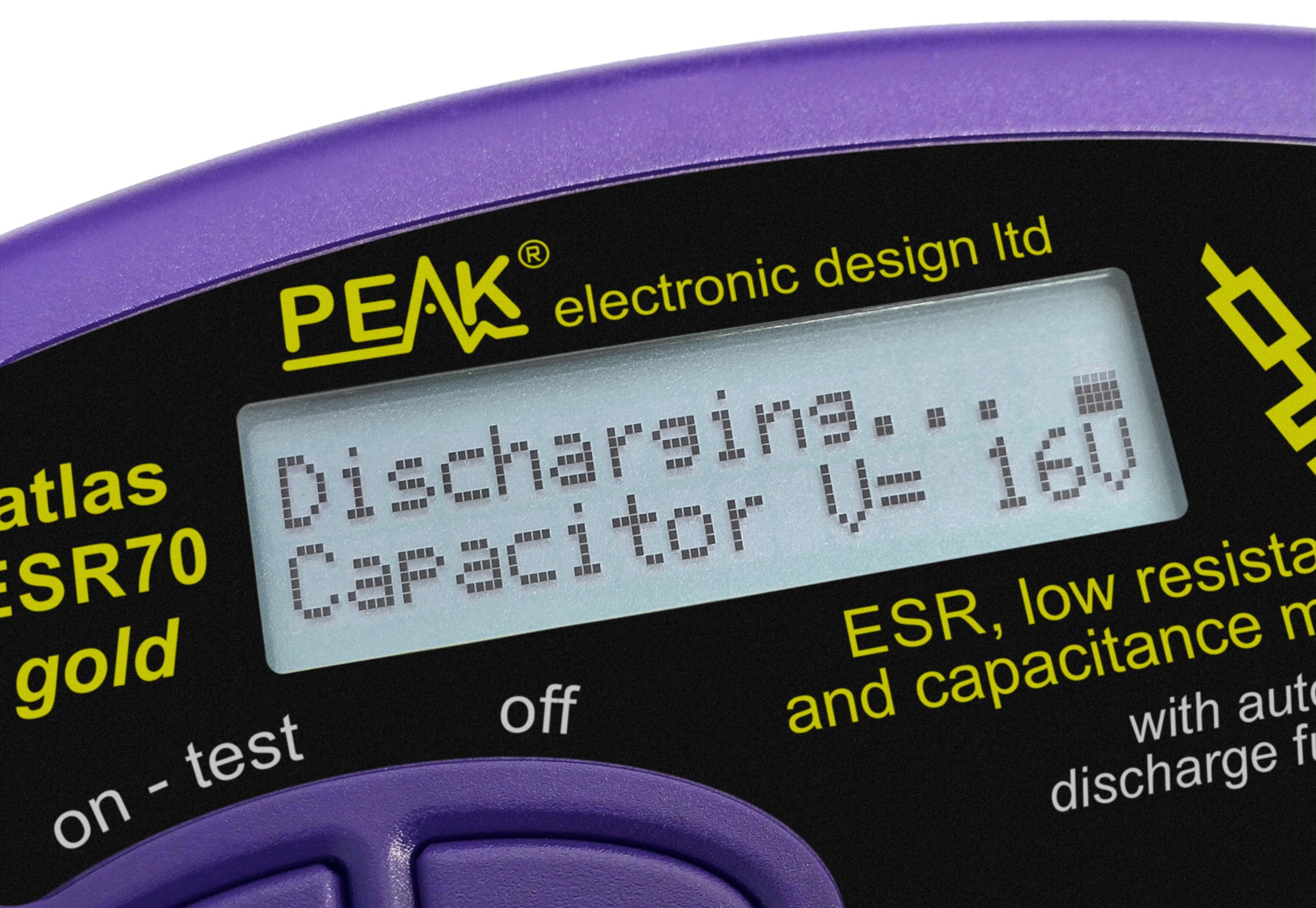

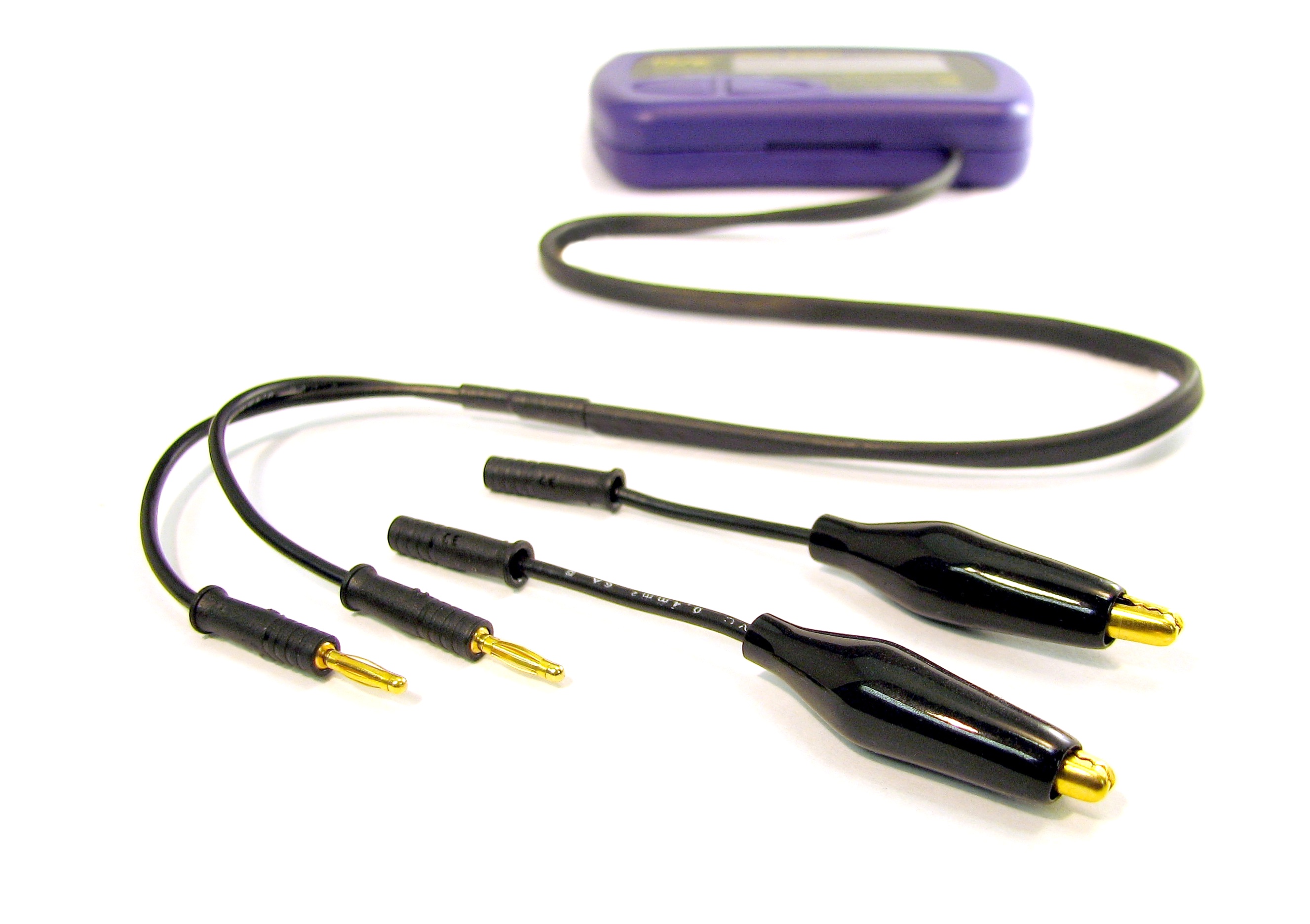

• Supplied complete with 2mm male test leads and 2mm compatible gold plated crocs.
• Test leads are ultra-durable and 45cm (18") long with 2mm plugs.
• Enhanced software compensation of cable resistance.
• Enhanced compensation for leakage or parallel resistance.

Remember, this is an improved version of the Peak Atlas ESR Plus (ESR70). This new "Gold" version does everything the "Plus" version did, but it does it better.

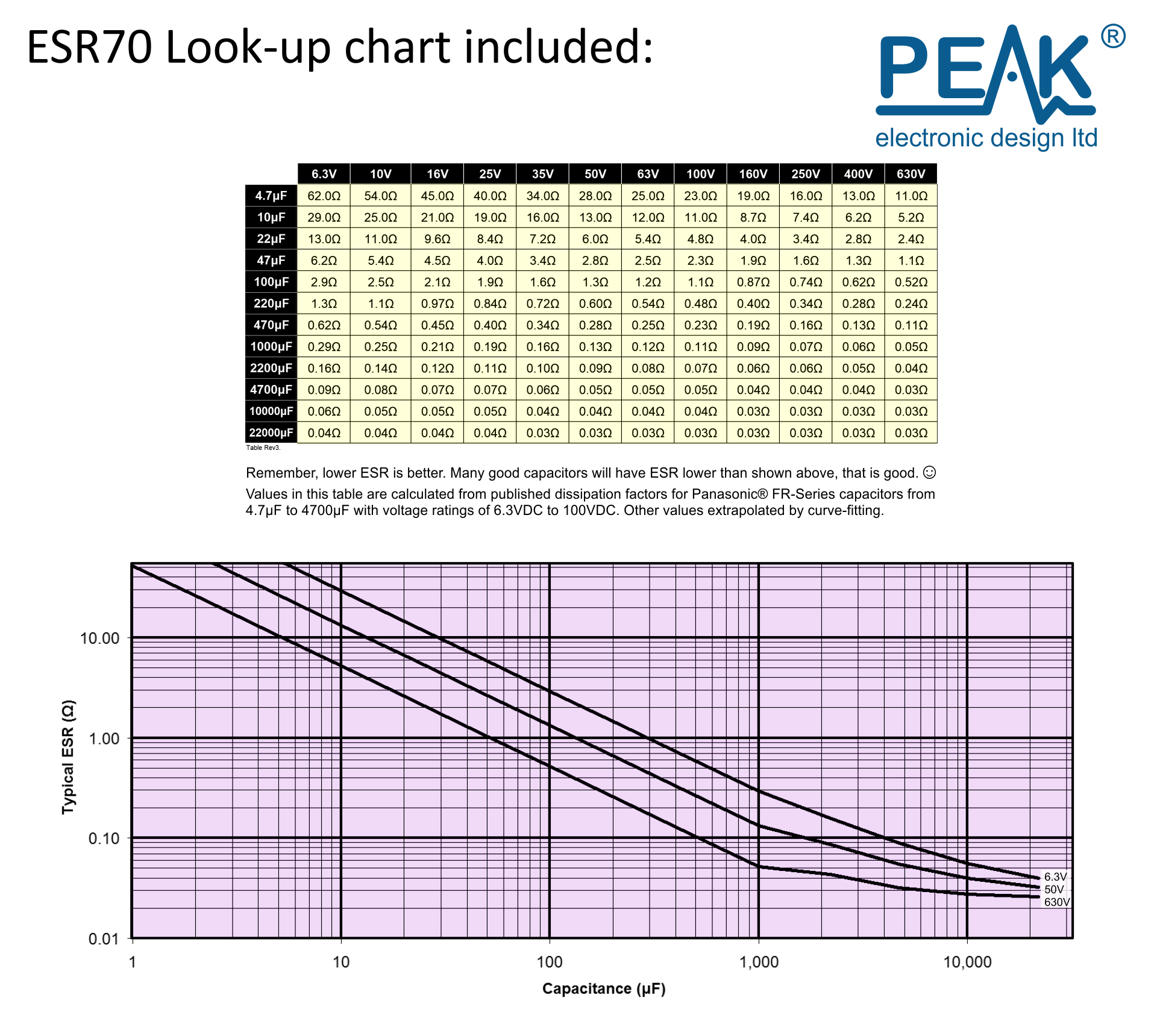

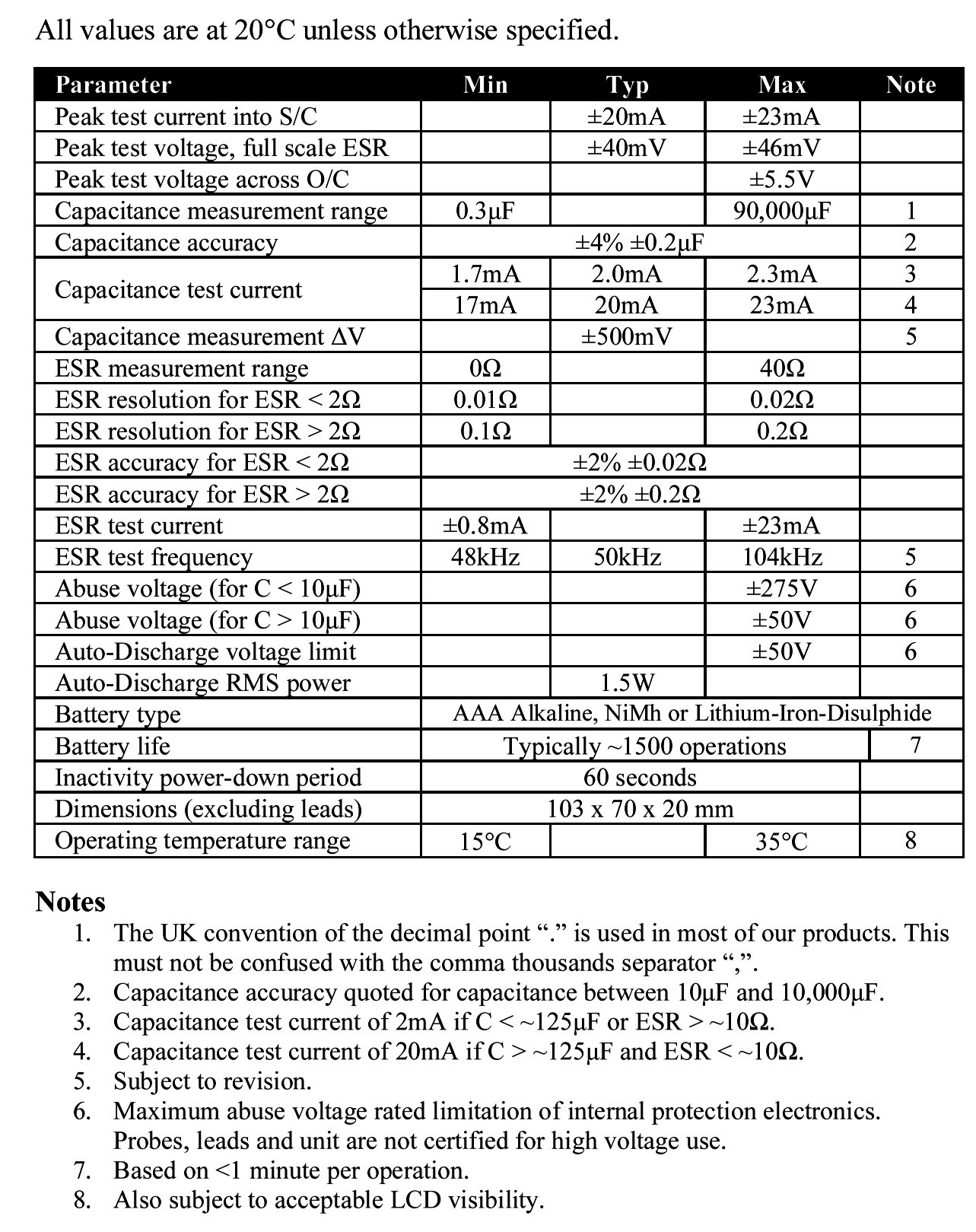

Summary Specification Table
ESR range: 0.00Ω to 40.0Ω
ESR accuracy: ±2% (typical)
ESR resolution (ESR<2Ω): 0.01Ω to 0.02Ω
ESR resolution (ESR>2Ω): 0.1Ω to 0.2Ω
Capacitance range: 0.3μF to 90,000μF
ESR test frequency: 50-100kHz ±4%
ESR test voltage (across 40Ω): 40mV (typical)
Operating temperature range: 15°C to 35°C (60°F to 95°F)
Battery type: AAA Alkaline (1.5V) Supplied
Display: Backlit Alphanumeric LCD
Auto-off period: 1 minute (typical)


New Gold Features:
Improved LCD with better backlight.
10x faster capacitance measurement for large capacitors.
Enhanced user options system.
New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
Much wider capacitance measurement range now 0.3μF to 90,000μF (was 1μF to 22,000μF).


Includes:
ESR70 - Equivalent Series Resistance Meter.
Extra-long and extra-flexible test cables (450mm of Silicone covered cable).
2mm plugs and sockets with removable gold plated crocodile clips.
Comprehensive illustrated user guide.
AAA Alkaline cell.


Specification Summary at 20°C (68°F) unless otherwise specified.


Photography (click to enlarge)


Other Downloads esr70-user-guide-en.pdf
  esr70-user-guide-de.pdf
  esr70-user-guide-it.pdf
  esr70-user-guide-fr.pdf
  esr70-datasheet-en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.5" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.163kg (5.8oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Codee 9030 3399 20 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, Atlas ESR, ESR70, ESR 70, ESR meter, capacitor meter, capacitor tester, ESR tester, capacitance meter, capacitance tester, equivalent series resistance, short circuit tester, low resistance meter, capacitor analyser, capacitor analyzer, capacitance analyser, capacitance analyzer, ESR analyser, ESR analyzer,

Related products ATC55, ATC01, GP23A, ESRLHP2, CRC01EM, ESRNEEDLES, ESRPRODS
