Title Replacement LCR Lead Set with 2mm connectors (Part number LLSM)

EAN 0712201377620

Catalogue copy High quality replacement lead set for the Atlas LCR Passive Component Analyser.

Key Features

  • Prepared for fitting to LCR40 instruments.
  • Terminated with 2mm gold plated plugs (red and black).
  • Robust plugs and sockets won't come apart by accident.
  • Supplied with pair of compatible gold plated hook probes with 2mm sockets.
  • Compatible with other 2mm industry standard accessories such as SMD Tweezers and crocs.
  • Gold plated to ensure good contact conductivity and long life.
  • Flexible RG174 type cable.
  • Parasitic inductance, capacitance and resistance easily nulled by the Atlas LCR Probe Compensation feature.
  • Detailed fitting instructions included.

Specification Summary
Main lead length (including plugs) approx 250mm (9.8")
Hook probe lead length (including probes and sockets) approx 100mm (3.9")

Photography (click to enlarge)

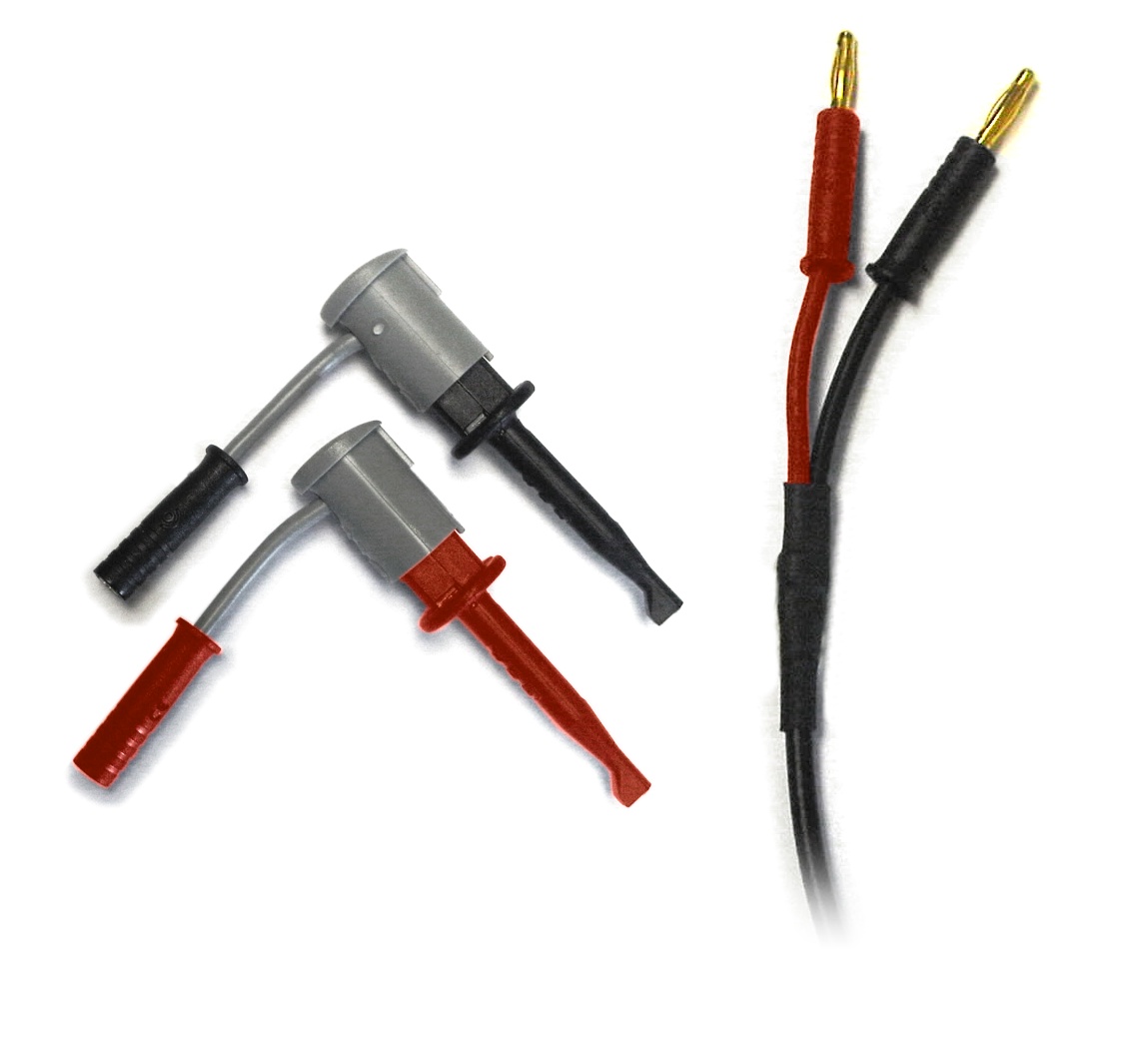

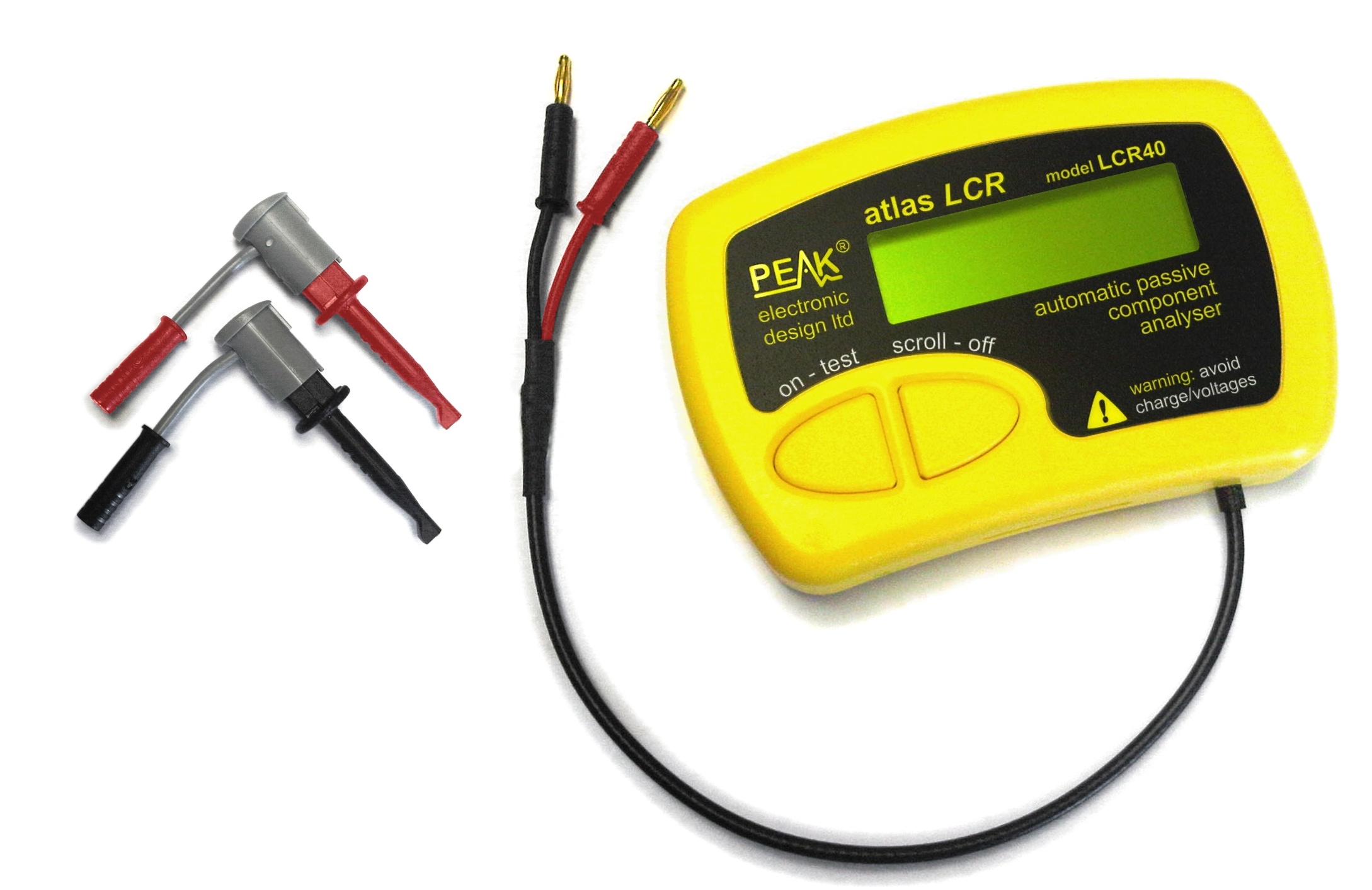

Lead set fitted to Atlas LCR (not included)


Other Downloads llsm-user-guide-en.pdf
  llsm-user-guide-de.pdf
  llsm-user-guide-it.pdf
  llsm-user-guide-fr.pdf

Dimensions per product (excluding leads) 125 x 20 x 10 mm (4.9" x 0.8" x 0.4")
Dimensions per product (packaged) 150 x 90 x 20 mm

Weight per product (nett) 0.010kg
Weight per product (packaged inc docs) 0.020kg

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 9020 00 GB

Fundamental Materials Plastic and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS
