| UTP05
Reseller Resources |
|
|
| Title |
Atlas IT - Network Cable
Analyser (Model UTP05) |
|
|
| EAN |
5026686760675 |
|
|
| Catalogue copy |

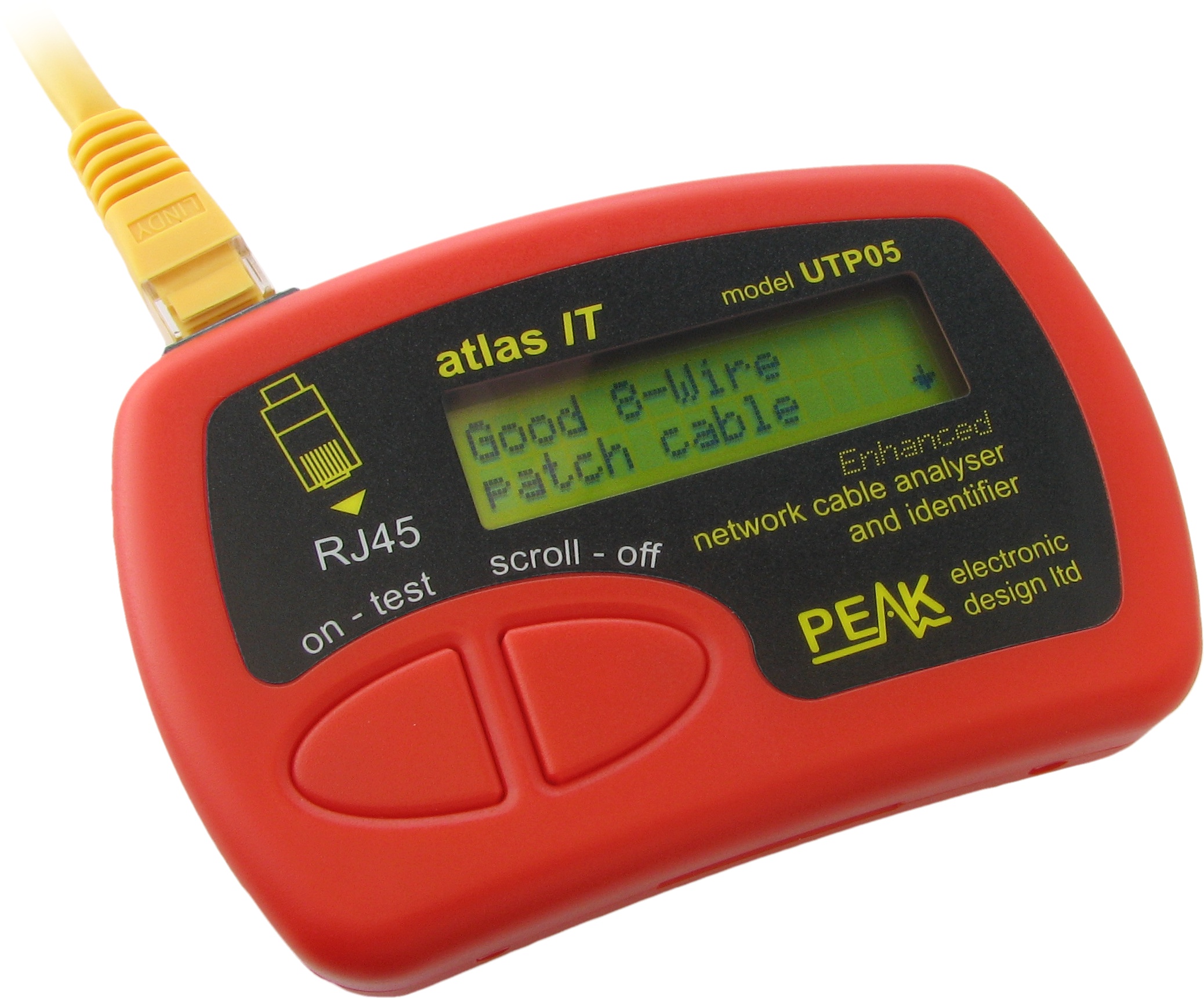

Handheld network cable
analyser for testing RJ45 (Cat5/5e/6) style network cabling. Connect the

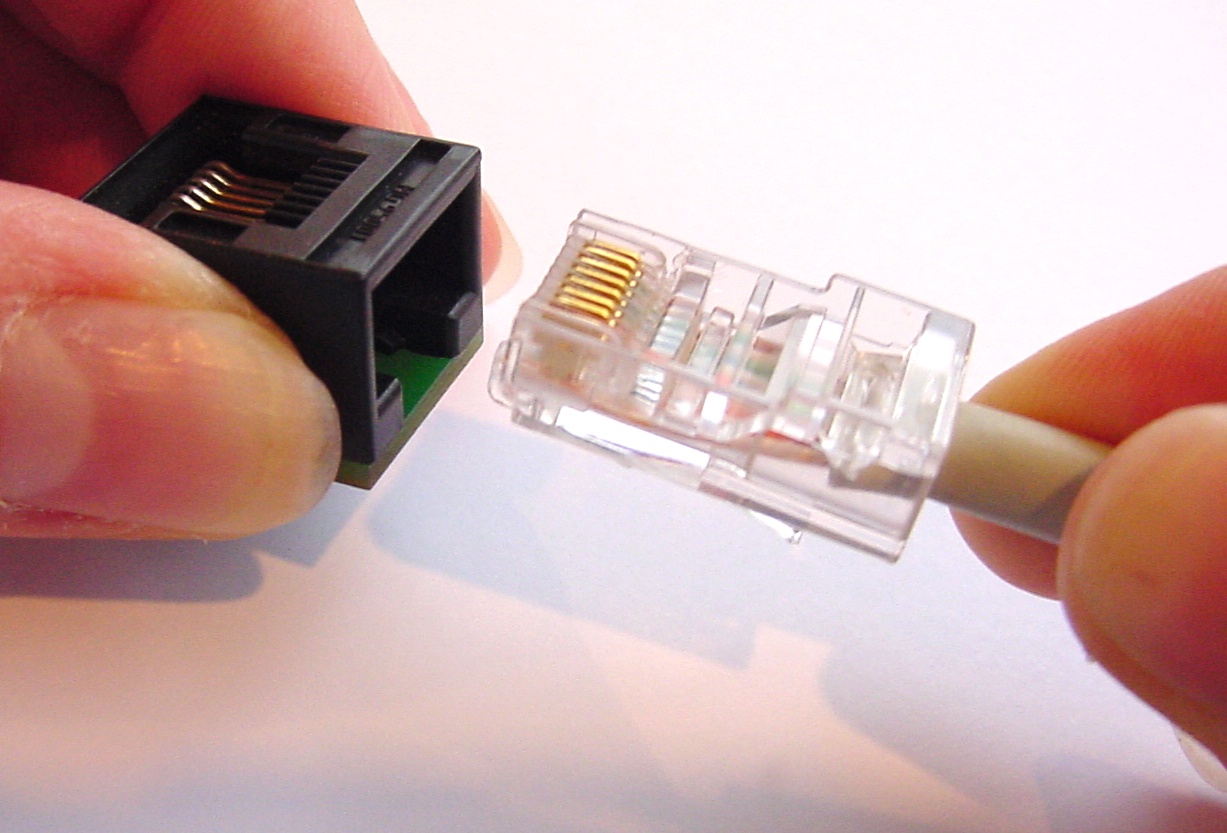

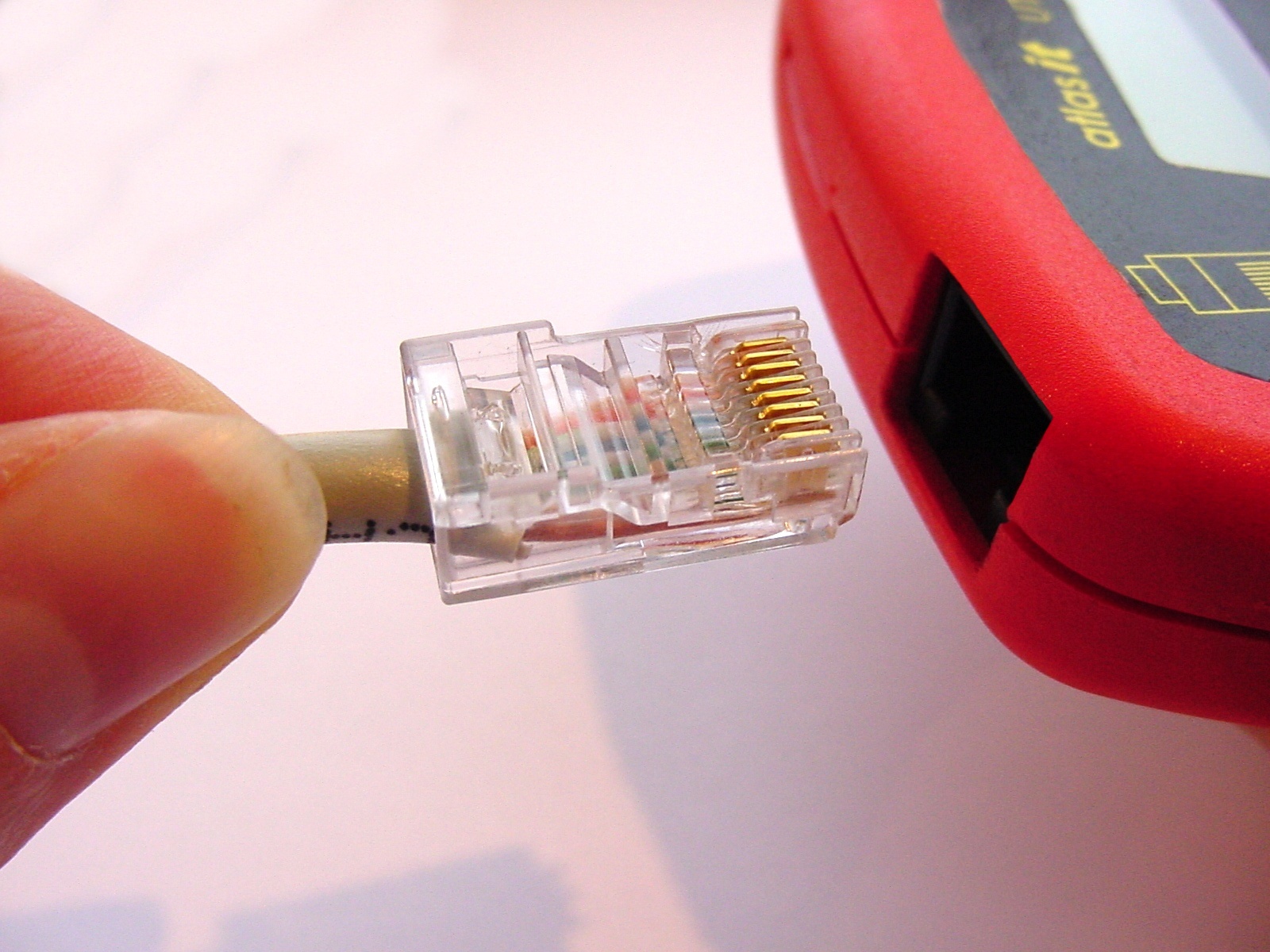

Atlas IT cable analyser at one end of your cabling and one of
the supplied terminators to the other end. The Atlas IT will

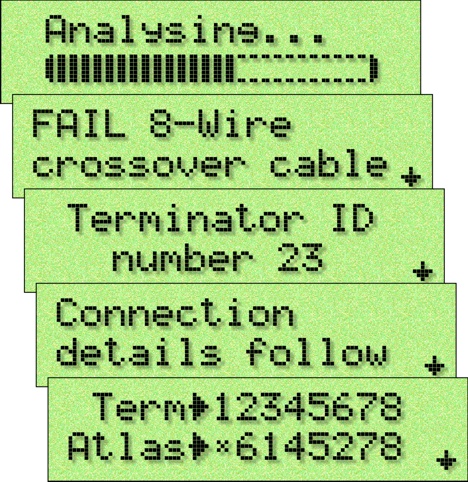

then analyse all the lines from one end to the other and identify the
connection pattern (such as straight-through, crossover, token-ring,
voice/data and many more types). Any wiring faults are clearly displayed
including breaks, shorts or swaps. Mini patch cables are also included
to enable the testing of RJ45 sockets and their associated cabling. The Atlas
IT is compatible with optional "Identified"
terminators allowing for the easy analysis and identification of
multiple cable runs. Suitable for Cat 5, Cat 5e and Cat 6 cabling with
RJ45 style plugs or sockets (shielding not tested). A full colour

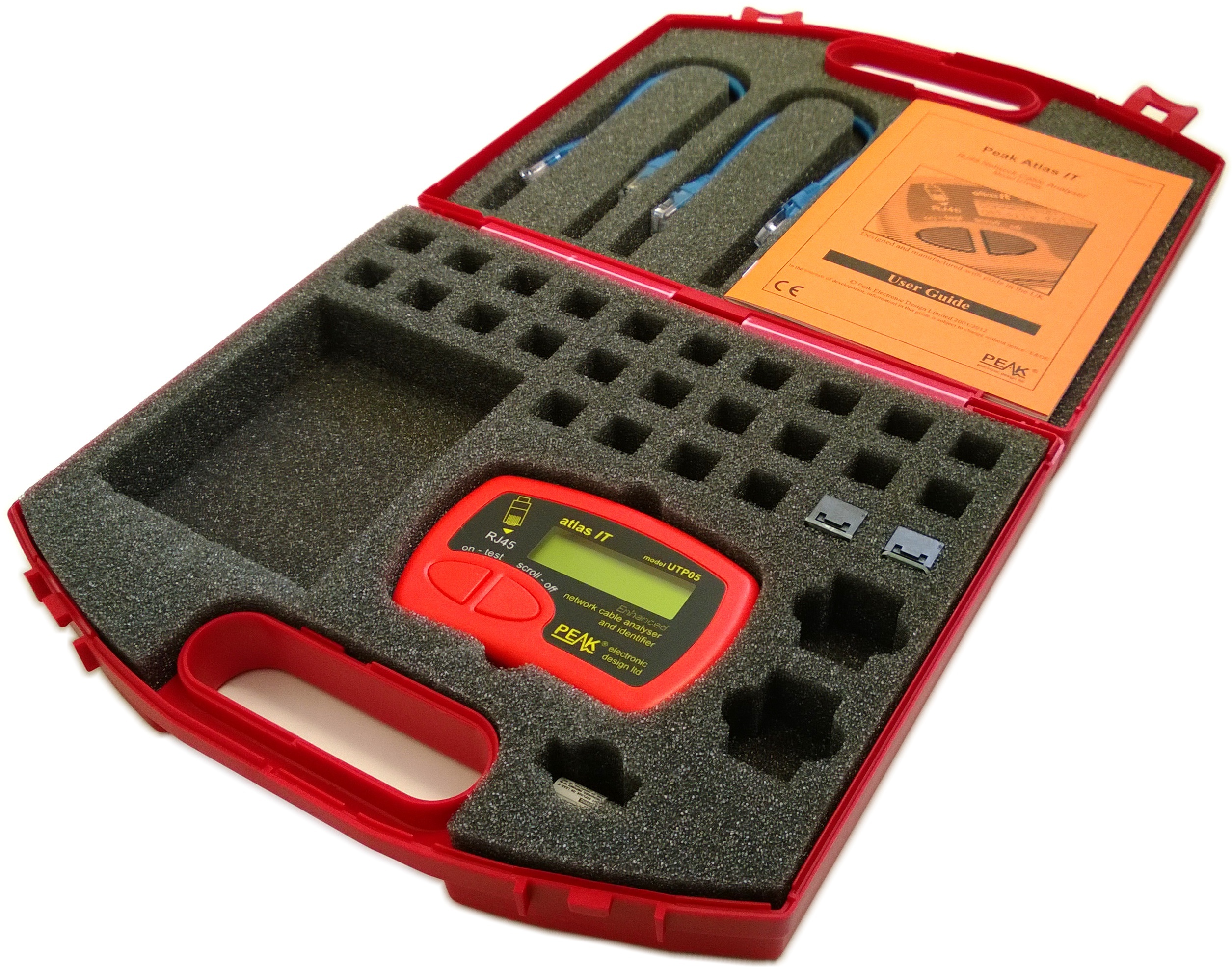

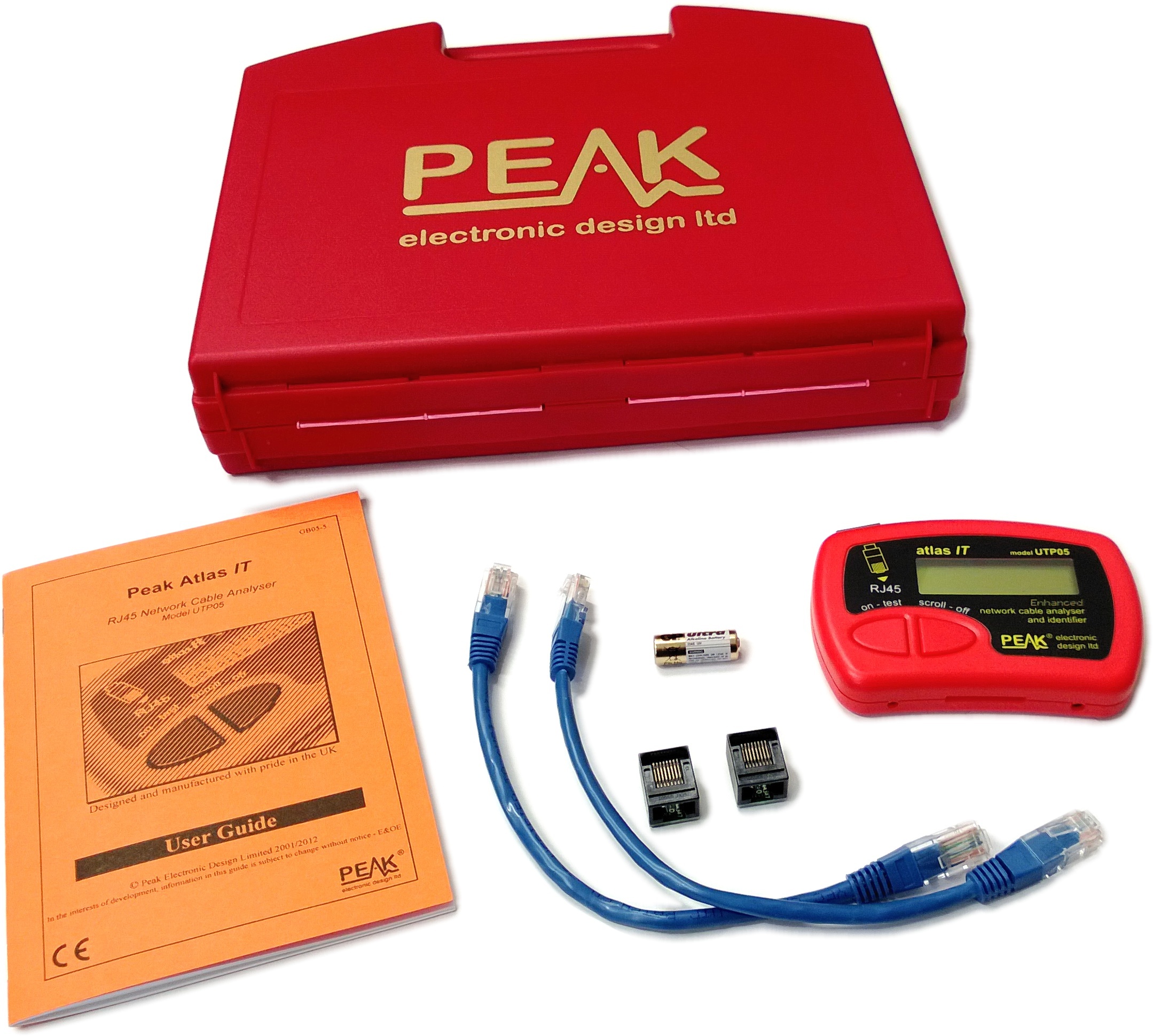

Ethernet connection chart is included in the user guide. Supplied in a
tough padded carry case, spare battery, 2 terminators, 2 patch cables
and a user guide. Space is provided in the carry case for up to 24
identified terminators. This instrument does not measure the connection
speed capability or cable length.
Features
- Automatic cable type detection (Straight-through, crossover, Token
Ring, voice/data etc)

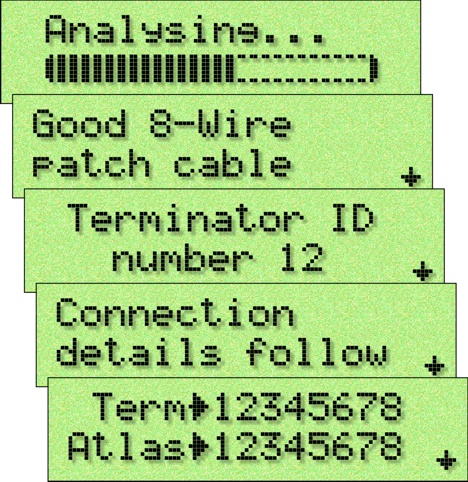

- Full connection pattern display from one end to the other.
- Detection of shorts, breaks and swapped lines.
- Suitable for RJ45 plugs or sockets (wall sockets or patch panels).

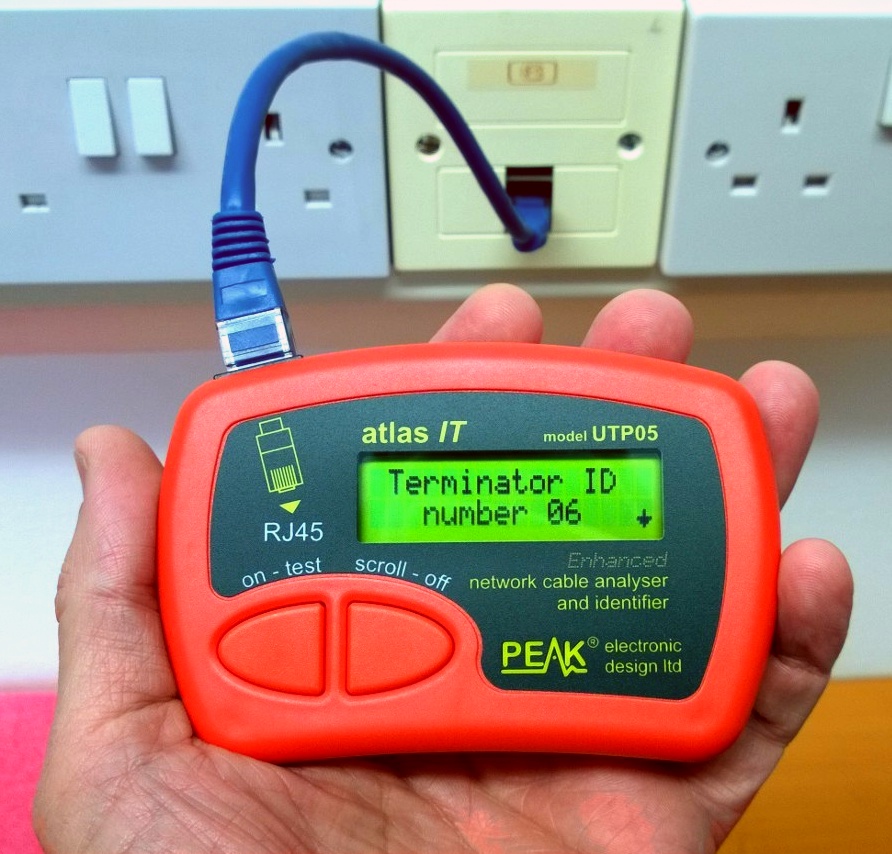

- Optional cable-run identification when using up to 24 uniquely
identified terminators.
- Displays cable making instructions when not testing cables.
|
|
|
| Specification
Summary |
|
Parameter
|
|
Notes
|
|
Network
Cable Category
|
Cat
5, 5e, 6 (UTP)
|
|
|
Connection
Type
|
RJ45,
8 pin.
|
|
|
Maximum
Cable Length
|
150
metres (500 feet)
|
1
|
|
Test
Voltage
|
±5V
|
|
|
Test
Current
|
±2.5mA
|
|
|
Protection
Rating
|
±15V
|
2
|
|
|
±80V
|
3
|
|
Operating
Temperature
Range
|
10°C
to 50°C
|
4
|
| |
50°F
to 122°F
|
|
|
Battery
Voltage
Range
|
7.0V
to 13.0V
|
|
|
Battery
Type
|
GP23A
12V Alkaline
|
|
|
Atlas
IT Dimensions
|
103
x 70 x 20 mm
|
|
| |
4.1"
x 2.8" x 0.8" |
|
|
Terminator
Dimensions
|
18
x 15 x 14 mm
|
|
| |
0.7"
x 0.6" x 0.6" |
|
| Carry
Case Dimensions |
268
x 225 x 55 mm |
|
| |
10.6"
x 8.9" x 2.2" |
|
-
Dependant
on quality of cable, connections and influence of external
interference.
-
Specified
for durations no longer than 60 seconds.
-
Specified
for durations no longer than 15 seconds.
-
Subject
to acceptable LCD visibility.
|
|
|

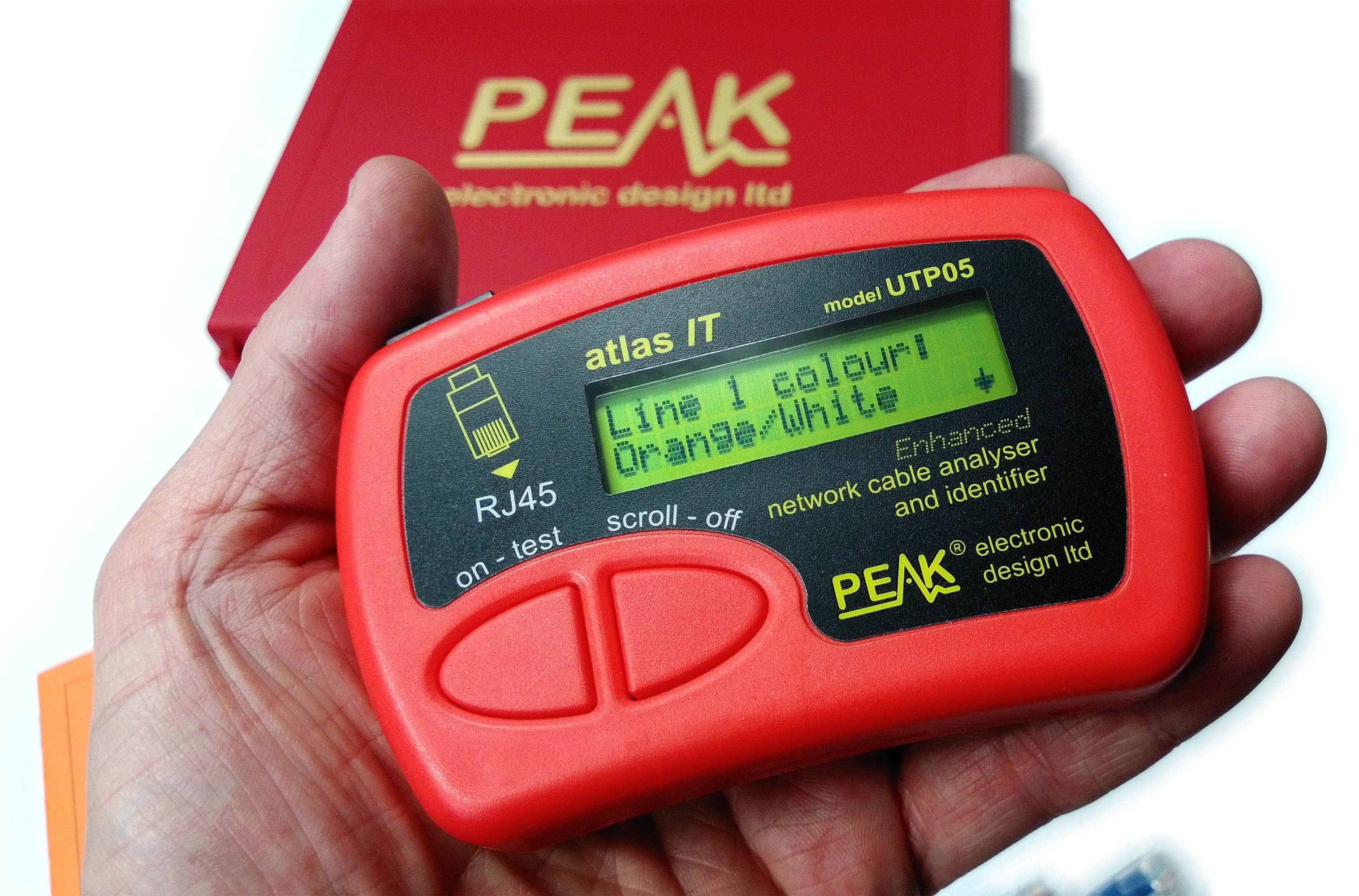

| Photography (click
to enlarge) |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |

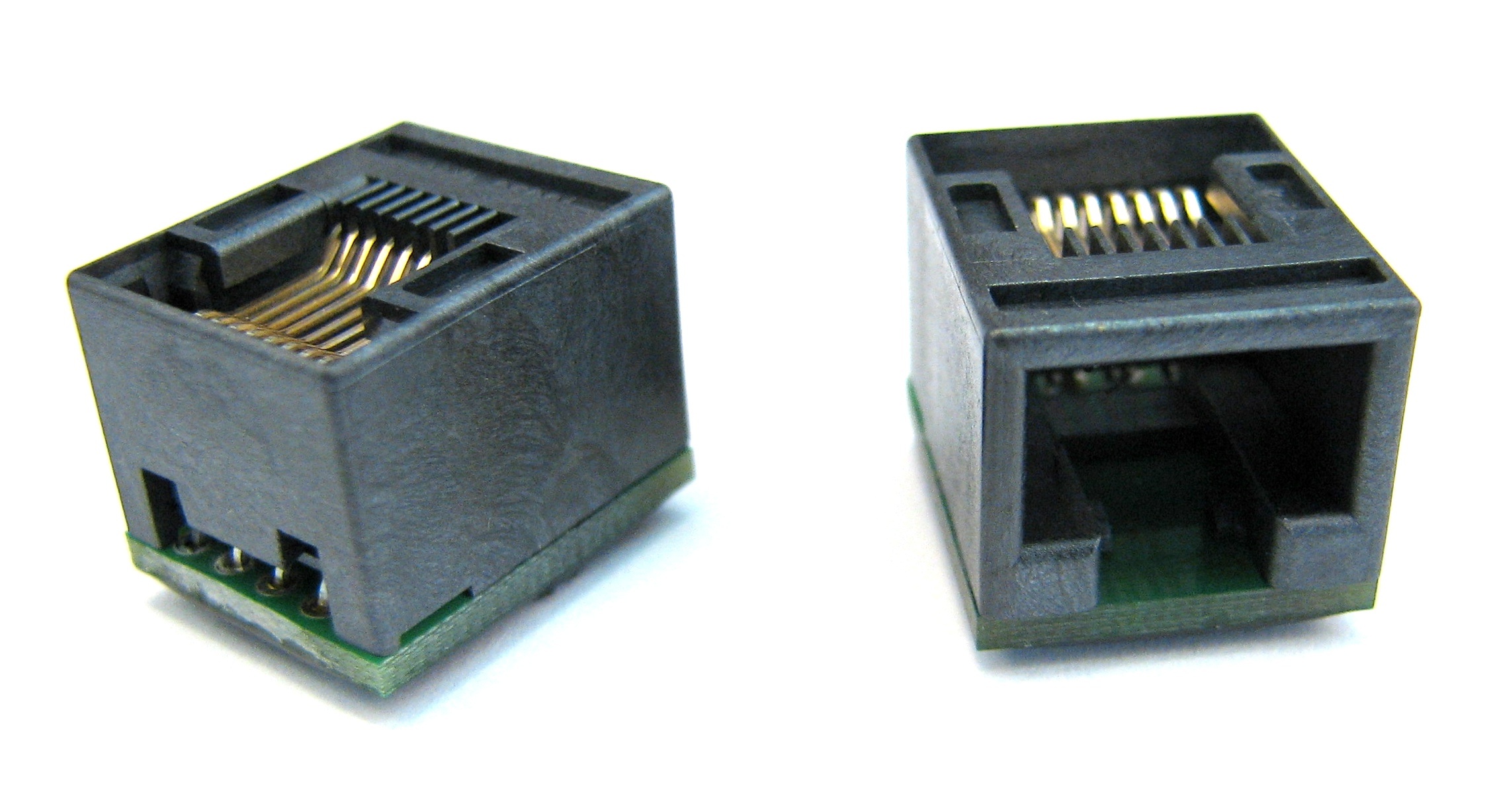

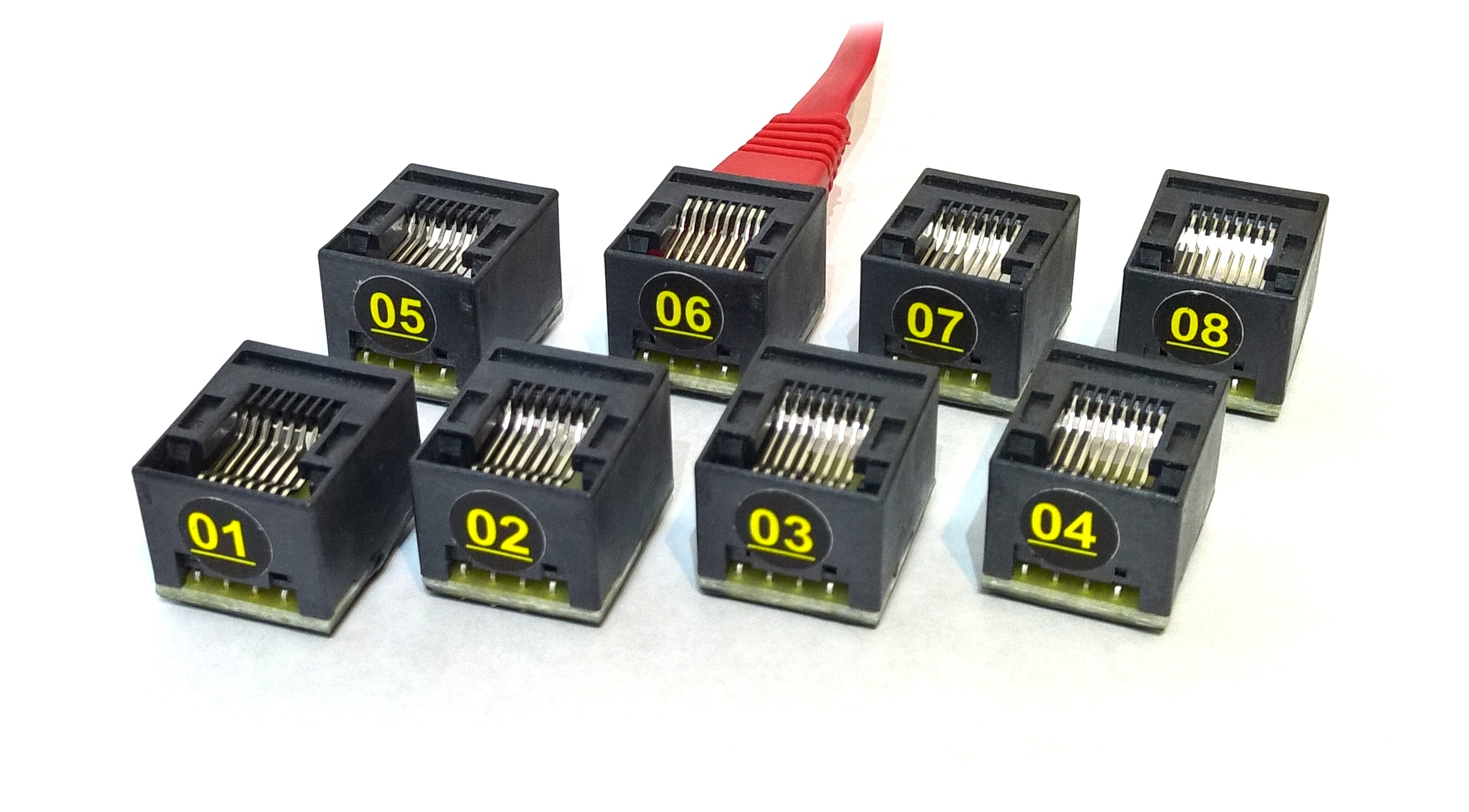

| Optional Identified Terminators |
|
 |
 |
|
|
 |
|
|
| Other Downloads |
utp05-user-guide-en.pdf |
| |
utp05-user-guide-de.pdf |
| |
utp05-user-guide-it.pdf |
| |
utp05-user-guide-fr.pdf |
| |
utp05-datasheet-en.pdf |
|
|
| Dimensions per
product (excluding leads) |
268 x 225 x 55 mm
(10.6" x 8.9" x 2.2") |
| Dimensions per
product (packaged) |
268 x 225 x 55 mm
(10.6" x 8.9" x 2.2") |
|
|
| Weight per product (nett) |
0.583kg (1lb 5oz) |
| Weight per product
(packaged inc docs) |
0.601kg (1lb 6oz) |
|
|
| Bulk order multiple |
20, 80 |
|
|
| Harmonisation /
Commodity / Tariff Code |
9031 8098 99 GB |
|
|
| Fundamental
Materials |
Plastic, glass and
metal. |
|
|
| Country of
manufacture |
England (UK) |
|
|
| Certification |
CE, WEEE, ROHS |
|
|
| Keywords |
peakelec, peak
electronic design, peak electronics, peak electronic, Peak Atlas, Atlas,
UTP05, Atlas IT, Cable tester, cable analyser, cable analyzer, network
tester, network analyser, network analyzer, RJ45 tester, RJ45 analyser,
RJ45 analyzer, cat5 tester, cat5 analyser, cat5 analyzer, cat5e tester,
cat5e analyser, cat5e analyzer, cat6 tester, cat6 analyser, cat6
analyzer, cat 5 tester, cat 5 analyser, cat 5 analyzer, cat 5e tester,
cat 5e analyser, cat 5e analyzer, cat 6 tester, cat 6 analyser, cat 6
analyzer. |
|
|
| Suitable Accessories |
IDT8A,
IDT8B, IDT8C, IDTN,
PAT02, GP23A, RJC08,
RJA11 |
