| RJC08 Reseller Resources | ||||
| Title | RJ45 to Croc Clip Breakout Adapter (Model RJC08) | |||
| EAN | 0700153222945 | |||
| Catalogue copy | A useful adapter that
enables testing and analysis of network cables that have not been
terminated with a plug or socket. Also useful for testing and
prototyping non-standard connection configurations. Supplied with gold
plated crocodile clips and high quality strain relief on all joints.
Cable is stranded for extra flexibility.

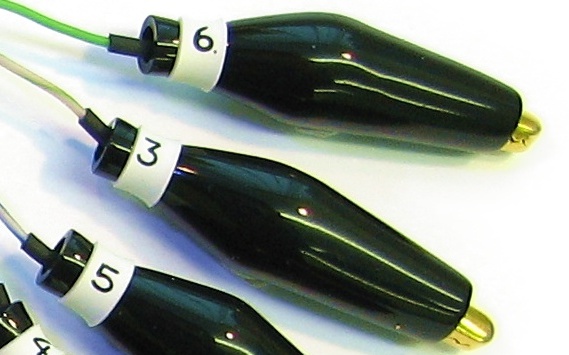

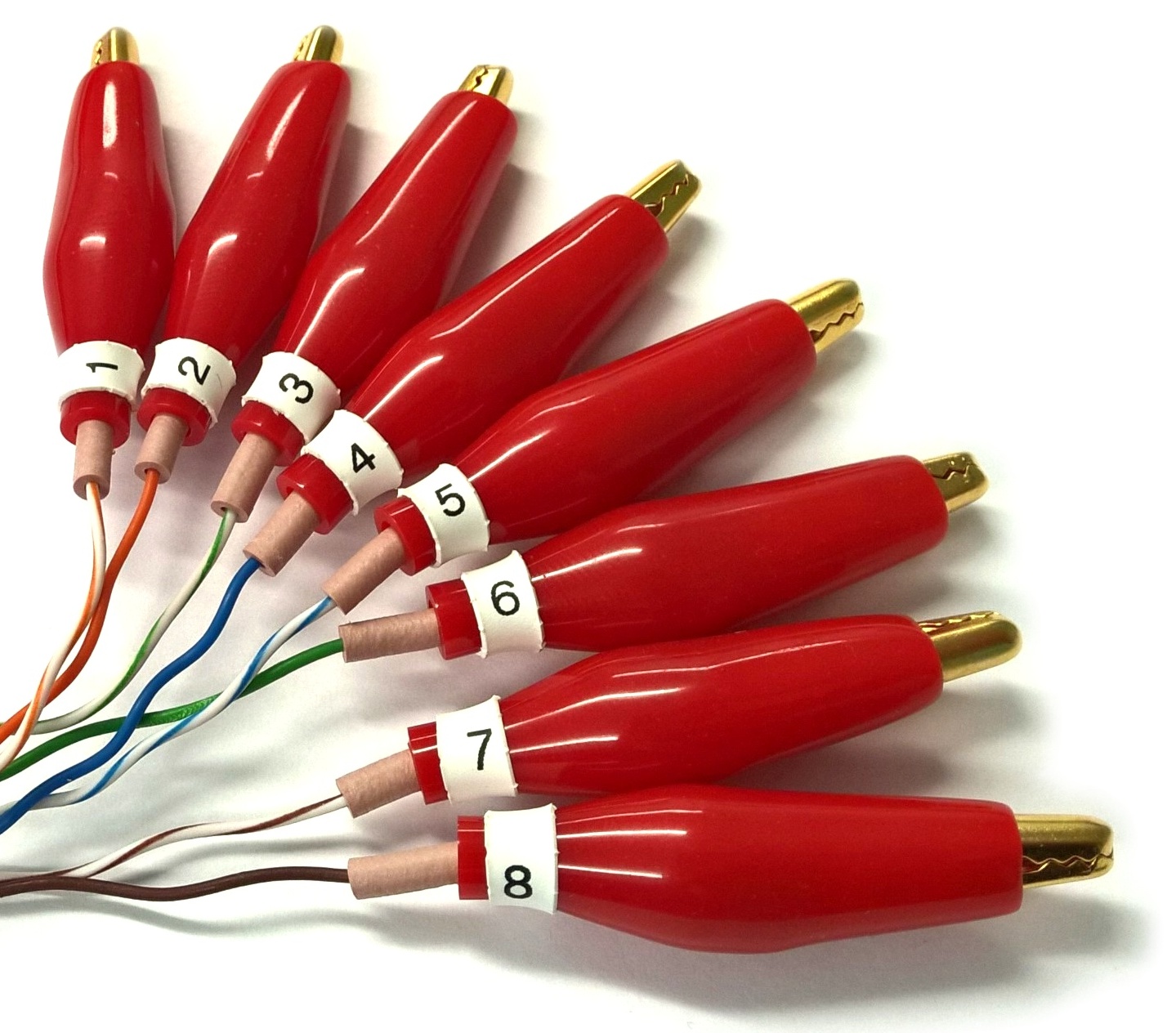

Individual lines are colour coded and clearly numbered on the croc-clip sleeves. Overall length (tip to tip) is approximately 220mm (8.7")
|
|||
| Specification Summary | Overall length (tip to
tip) is approximately 220mm (8.7") Surface finish: Gold plating Cable type: Stranded (not solid core) Shielding: None Cable identification: Colour coded and numbered (to international standard TIA/EIA-568-B.1-2001) |
|||

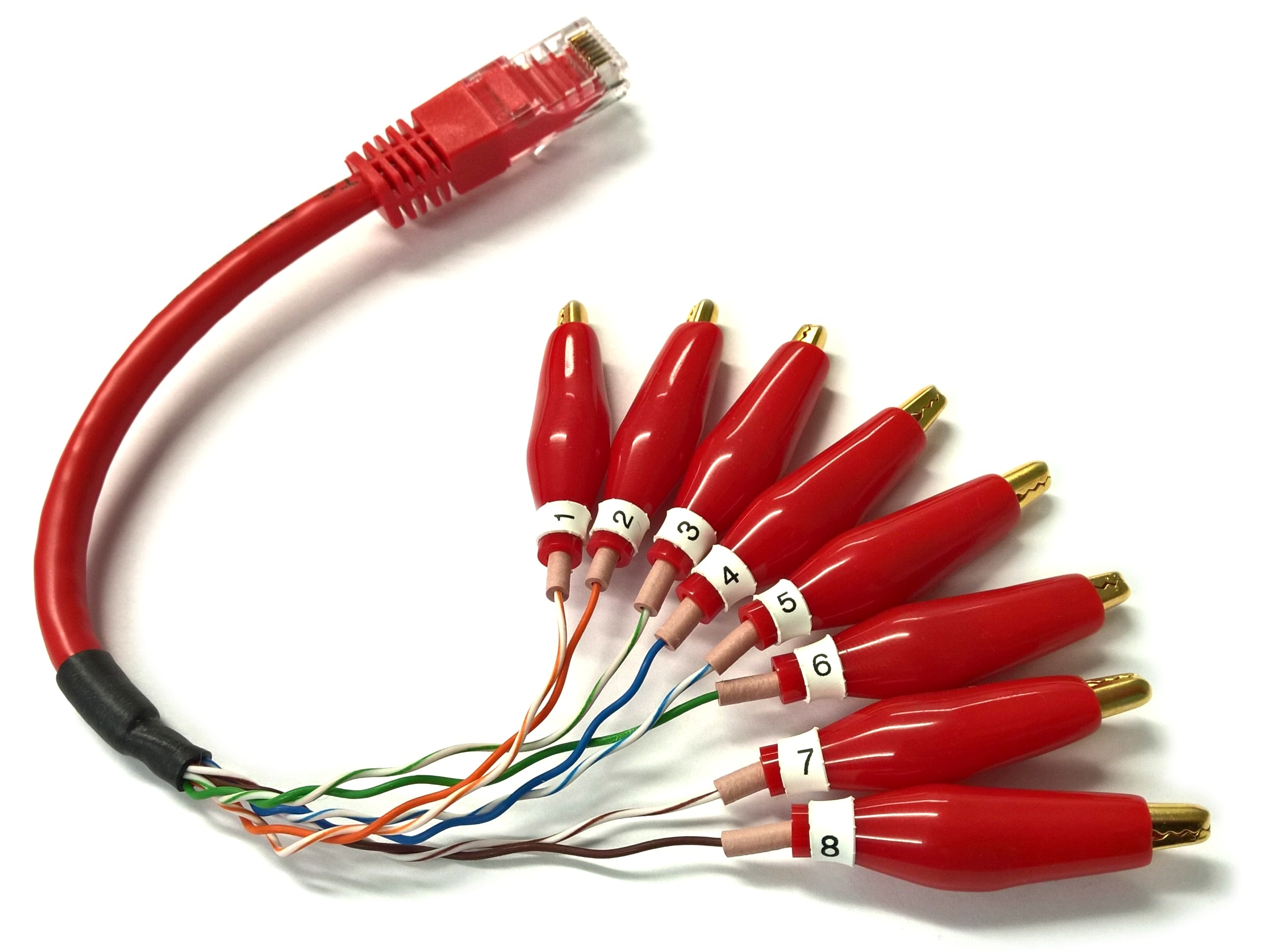

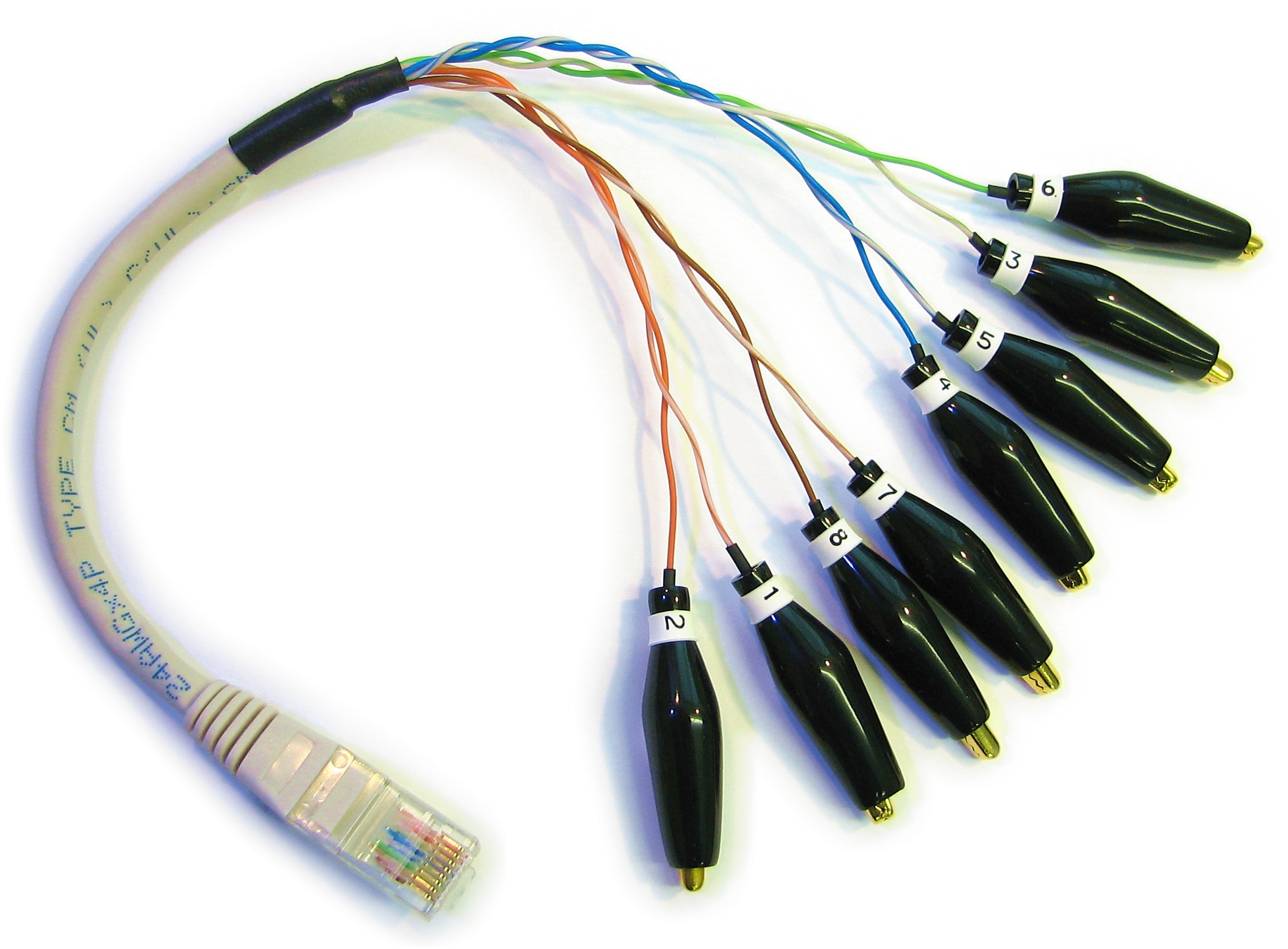

| Photography (click to enlarge) |  RJ45 cable colour may vary |
 |
 |
 |
| Other Downloads | ||||
| Dimensions per product | Overall length (tip to tip) is approximately 220mm (8.7") | |||
| Dimensions per product (packaged) | 150mm x 100mm x 37mm (5.9" x 4" x 1.5") | |||
| Weight per product (nett) | 0.083kg (3oz) | |||
| Weight per product (packaged inc docs) | 0.083kg (3oz) | |||
| Bulk order multiple | 20, 80 | |||
| Harmonisation / Commodity / Tariff Code | 9031 9085 90 GB | |||
| Fundamental Materials | Plastic and metal. | |||
| Country of manufacture | China, finishing operations performed in England (UK) | |||
| Certification | CE, WEEE, ROHS | |||
| Keywords | peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, numbered terminator, numbered terminators, IT terminators, IT terminator, terminators, terminator, IDT8A, IDT8B, IDT8C, IDT, ID terminator, ID terminators, UTP05, Atlas IT, Atlas Dongle, Cable Dongle, UTP05, Atlas IT, Cable tester, cable analyser, cable analyzer, network tester, network analyser, network analyzer, RJ45 tester, RJ45 analyser, RJ45 analyzer, cat5 tester, cat5 analyser, cat5 analyzer, cat5e tester, cat5e analyser, cat5e analyzer, cat6 tester, cat6 analyser, cat6 analyzer, cat 5 tester, cat 5 analyser, cat 5 analyzer, cat 5e tester, cat 5e analyser, cat 5e analyzer, cat 6 tester, cat 6 analyser, cat 6 analyzer, patch cable, network cable, cat 5 cable, cat5 cable, cat 5e cable, cat5e cable, croc clip, crocodile clip, alligator clip, breakout, adapter. | |||
| Suitable Accessories | IDT8A, IDT8B, IDT8C, IDTN, UTP05, GP23A | |||
