| RJA11 Reseller Resources | ||||
| Title | Pair of RJ11-RJ45 Adapters (Model RJA11) | |||
| EAN | 0700153222952 | |||
| Catalogue copy | A stunning pair of very
high quality adapters that allow you to test RJ11 style connectors with
the Atlas IT Cable Analyser (Model UTP05). Suitable for 2, 4 and 6 wire RJ11 cable types. These are best used in conjunction with firmware 3.8 or later (earlier versions will work fine but won't be specifically displayed by name). 2 adapters are supplied so that both ends of an RJ11 type cable run can be converted to RJ45 for plugging into the Atlas IT and a terminator. |
|||
| Specification Summary | RJ11 Socket: 2, 4 and 6
pin compatible. RJ45 Socket: 2, 4, 6 and 8 pin compatible. Connection pattern: 2-7 (RJ45) connected to 1-6 (RJ11), lines 1 & 8 not connected on RJ45. Contact material: Gold flash |
|||

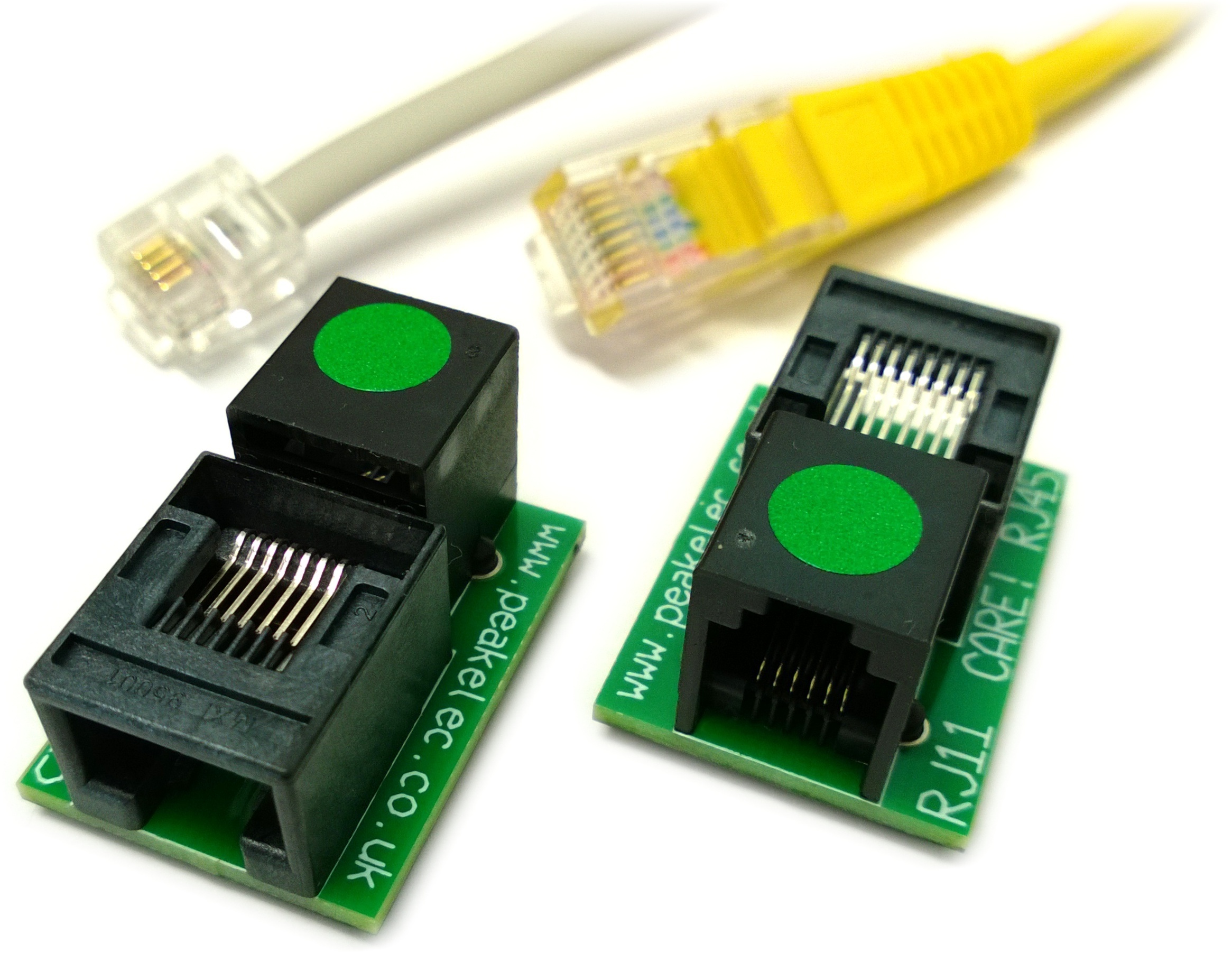

| Photography (click to enlarge) |  |
 |
 |
|
| Other Downloads | rja11-user-guide-en.pdf | |||
| rja11-user-guide-de.pdf | ||||
| rja11-user-guide-it.pdf | ||||
| rja11-user-guide-fr.pdf | ||||
| Dimensions per product | 32mm x 23mm x 18mm (1.25" x 0.9" x 0.7") x2 | |||
| Dimensions per product (packaged) | 150mm x 100mm x 37mm (5.9" x 4" x 1.5") | |||
| Weight per product (nett) | 0.083kg (3oz) | |||
| Weight per product (packaged inc docs) | 0.083kg (3oz) | |||
| Bulk order multiple | 20, 80 | |||
| Harmonisation / Commodity / Tariff Code | 9031 9085 90 GB | |||
| Fundamental Materials | Plastic and metal. | |||
| Country of manufacture | UK | |||
| Certification | CE, WEEE, ROHS | |||
| Keywords | peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, numbered terminator, numbered terminators, IT terminators, IT terminator, terminators, terminator, IDT8A, IDT8B, IDT8C, IDT, ID terminator, ID terminators, UTP05, Atlas IT, Atlas Dongle, Cable Dongle, UTP05, Atlas IT, Cable tester, cable analyser, cable analyzer, network tester, network analyser, network analyzer, RJ45 tester, RJ45 analyser, RJ45 analyzer, cat5 tester, cat5 analyser, cat5 analyzer, cat5e tester, cat5e analyser, cat5e analyzer, cat6 tester, cat6 analyser, cat6 analyzer, cat 5 tester, cat 5 analyser, cat 5 analyzer, cat 5e tester, cat 5e analyser, cat 5e analyzer, cat 6 tester, cat 6 analyser, cat 6 analyzer, patch cable, network cable, cat 5 cable, cat5 cable, cat 5e cable, cat5e cable, adapter, RJA11, RJ11, Modem, ADSL | |||
| Suitable Accessories | IDT8A, IDT8B, IDT8C, IDTN, UTP05, GP23A, RJC08 | |||
