SCR100 Reseller Resources

Title Atlas SCR - Triac and Thyristor Analyser (Model SCR100)

EAN 5026686029390

Catalogue copy The Atlas SCR is specifically designed to automatically analyse a wide range of Triacs and Thyristors (SCRs). Connect the part any way round and press test. The part type is identified (Triac or Thyristor), the pinout is identified and the gate sensitivity is displayed in 1 of 9 sensitivity categories as well as gate voltage. Suitable for parts that require a gate trigger current from less than 100uA up to 90mA. Load tests are performed with an internally generated load of 12V at 100mA, all from a single AAA alkaline battery (supplied). Not designed for in-circuit use.

Features

  • Automatic pinout detection and identification, connect any way round.
  • Automatic Triac/Thyristor detection.
  • Generates gate currents from 100uA up to 90mA.
  • Gate sensitivity category displayed.
  • Constant load test of 12V at 100mA regardless of battery condition.

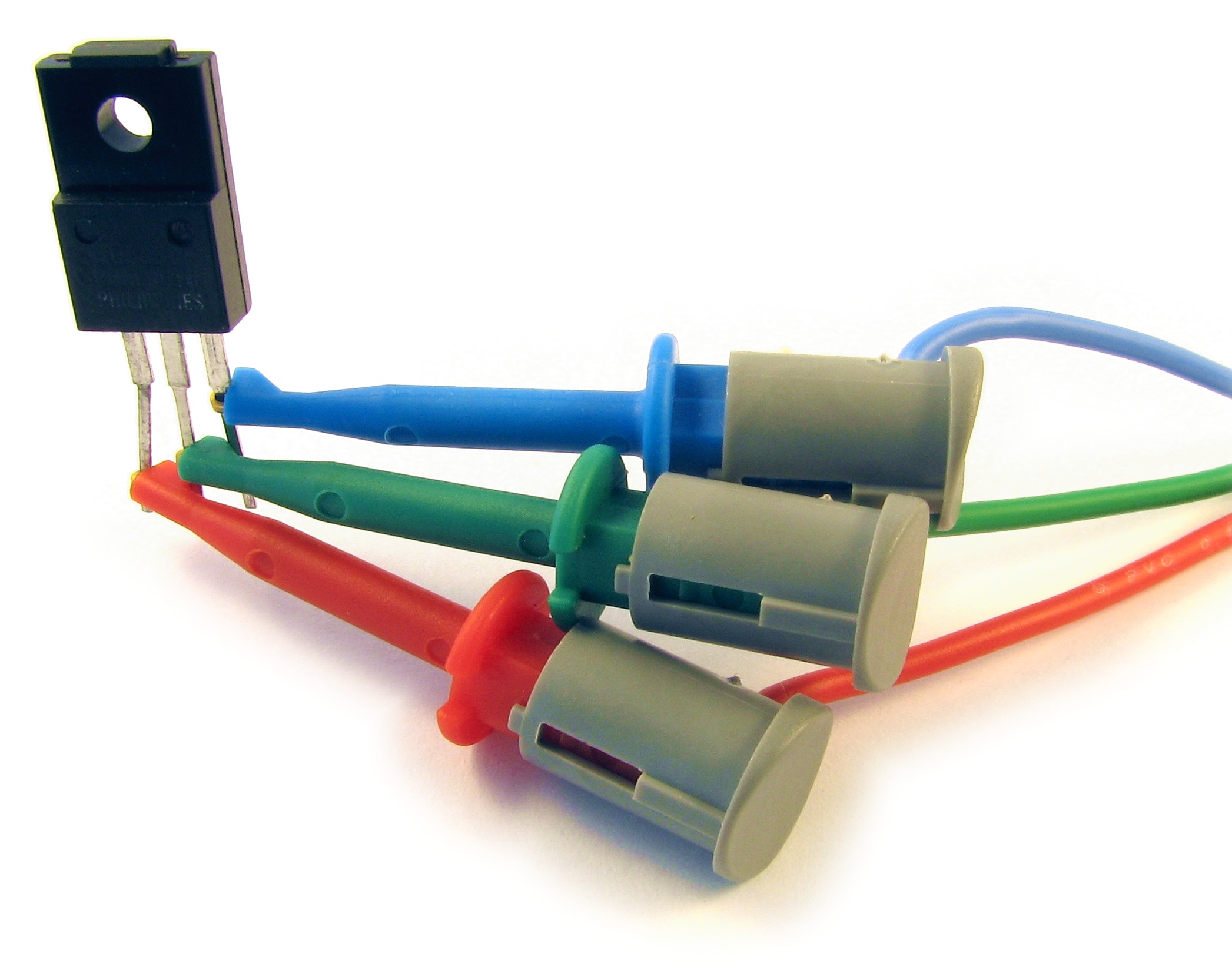

  • Supplied with gold plated red/green/blue universal hook probes.

Specification Summary at 20°C (68°F) unless otherwise specified

Parameter

Minimum

Typical

Maximum

Note

Peak test current into S/C



100mA

120mA

1

Peak test voltage across O/C

11.0V

12.0V

12.5V

1,2

Gate trigger current (IGT) range

0.1mA



90mA



Gate current category accuracy



±10%



3

Gate voltage (VGT) resolution



20mV

40mV



Gate voltage (VGT) accuracy

-80mV



+80mV



Test Load Current

90mA

100mA

110mA

4

Gate pulse width (IGT=100mA)

550ms

575ms

800ms



Gate pulse width (IGT>100mA)

250ms

275ms

300ms



Load pulse width (IGT=100mA)

1000ms

1100ms

1200ms



Load pulse width (IGT>100mA)

460ms

510ms

560ms



Battery type

AAA 1.5V Alkaline



Battery voltage range

1.0V

1.5V

1.7V



Low battery warning



1.1V





Inactivity power-down period

15 seconds if no result found





60 seconds if result found



Dimensions (enclosure)

103 x 70 x 20 mm



Operating temperature range

10°C



35°C

5

1. Between any pair of test clips.
2. For battery voltage greater than 0.9V.
3. Stated for nominal gate-anode voltage of 0.83V developed during trigger.
4. Typical MT2/Anode load current applied to a Triac/SCR.
5. Also subject to acceptable LCD visibility.

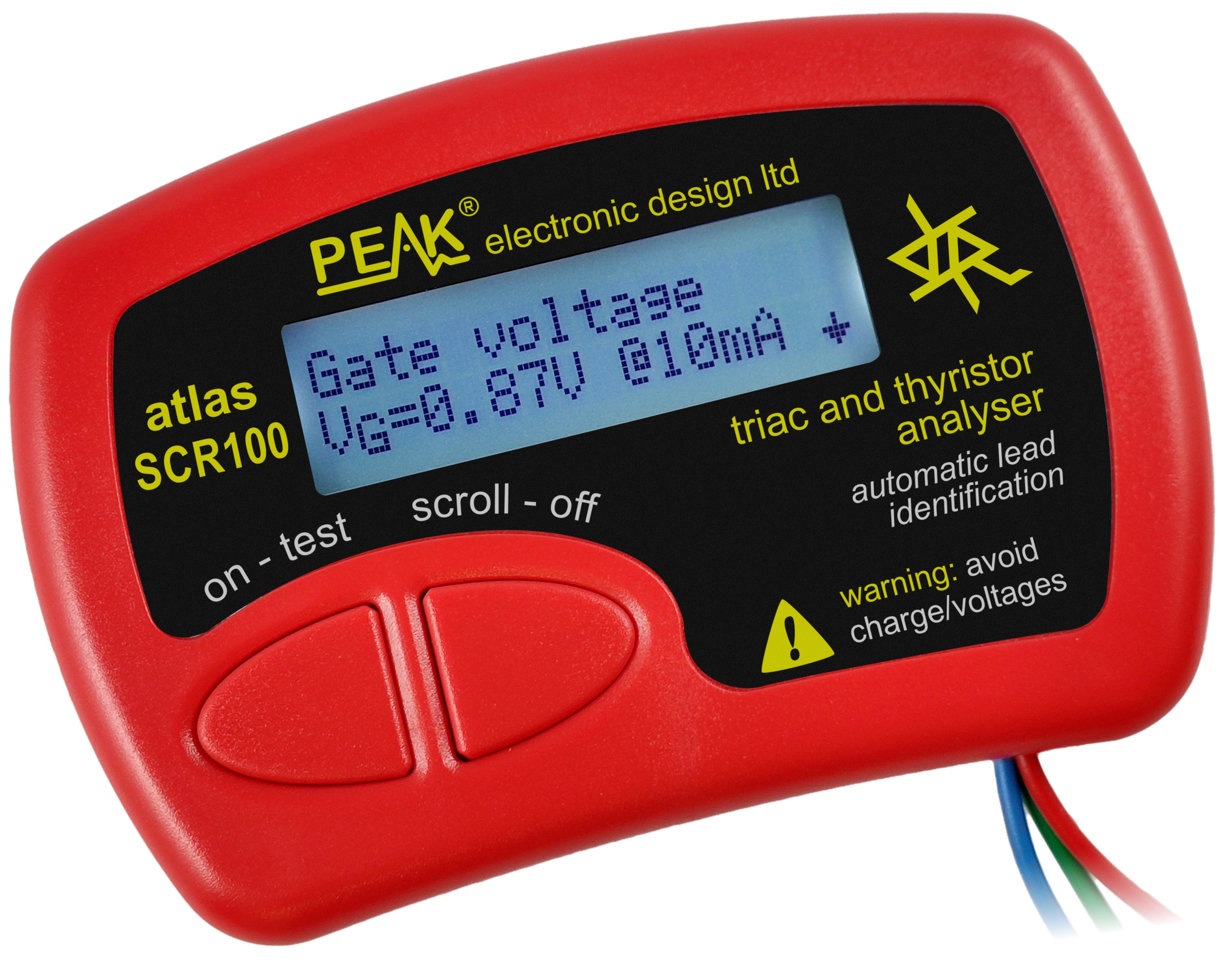

Photography (click to enlarge)

Other Downloads scr100-user-guide-en.pdf
  scr100-user-guide-de.pdf
  scr100-user-guide-it.pdf
  scr100-user-guide-fr.pdf
  scr100-datasheet-en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.5" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.160kg (5.7oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 8200 00 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, Atlas SCR, SCR tester, SCR analyser, SCR analyzer, triac tester, triac analyser, triac analyzer, thyristor tester, thyristor analyser, thyristor analyzer, SCR100.

Related products ATC55, ATC01, UPS56, PCA23
