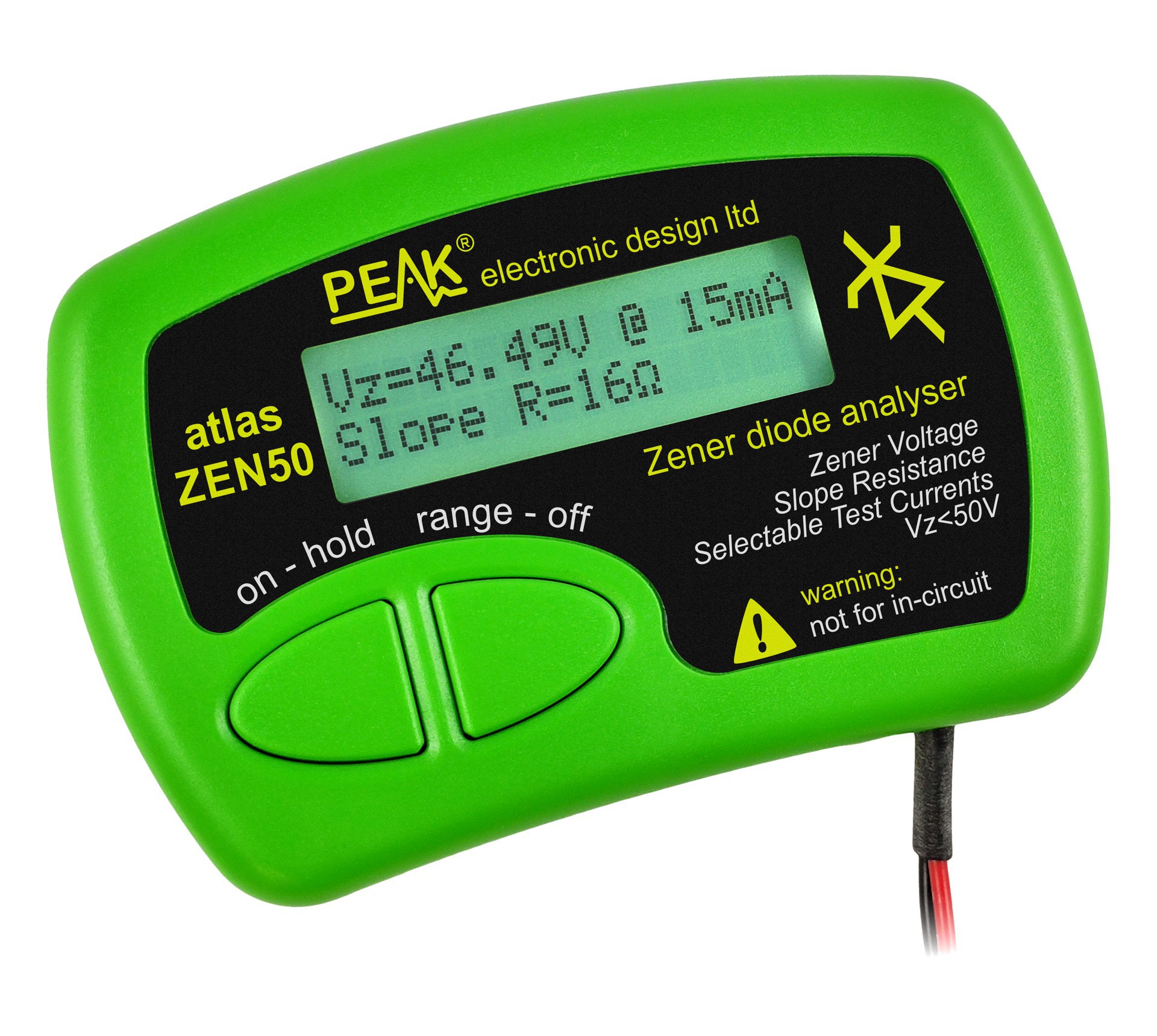

Title Atlas ZEN - Zener Diode Analyser (Model ZEN50)

EAN 0700153222891

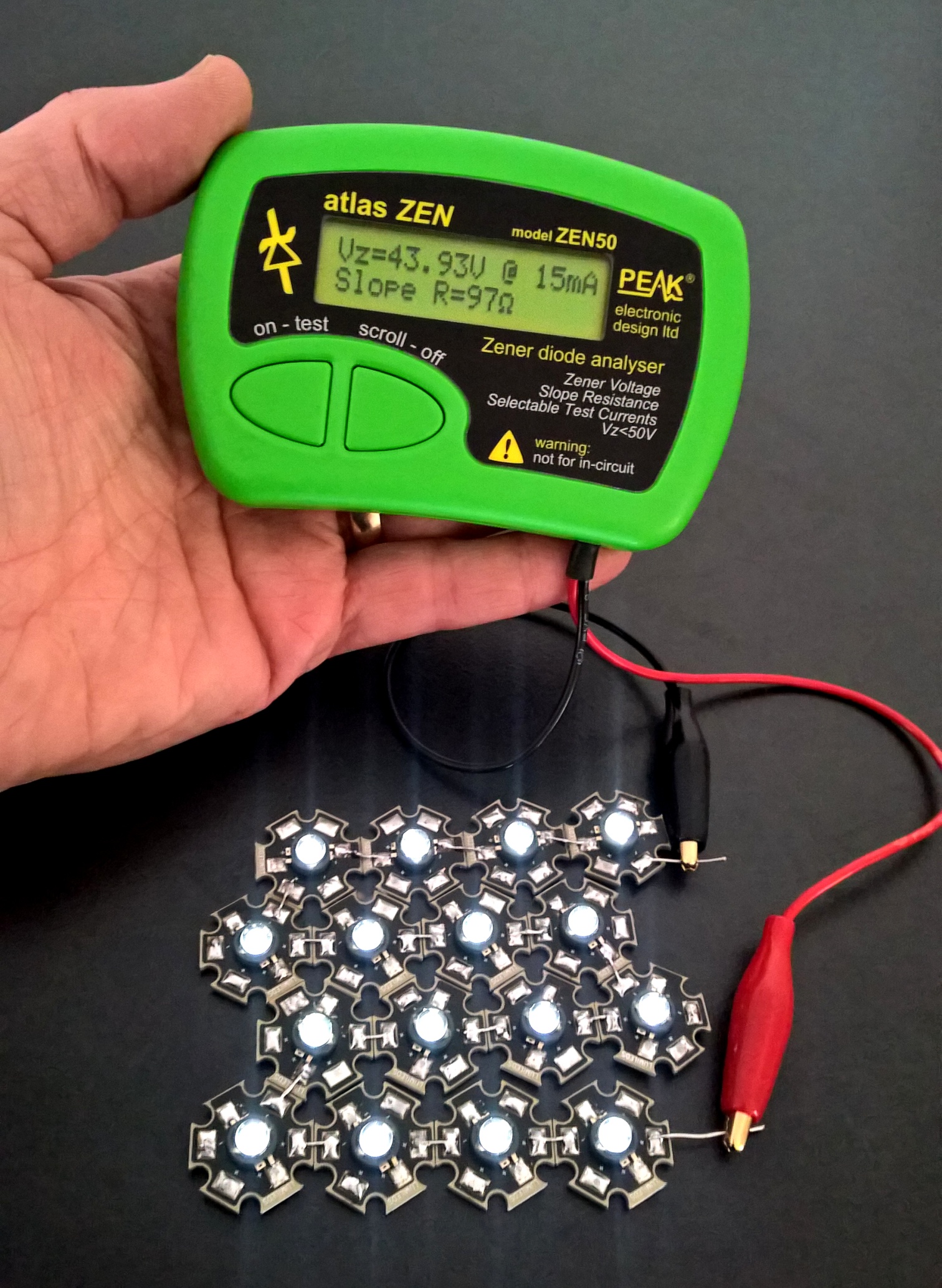

Catalogue copy Test Zeners, Avalanche Diodes, VDRs, TVSs, LED strings and much more (up to 50V!)

Key Features:

  • Measures breakdown voltage (0.00V to 50.00V) with a resolution as fine as 20mV.
  • Measures slope resistance (up to 1kΩ at 15mA with a 1Ω resolution).
  • Supports most Zeners, Avalanche diodes and reference diodes from 0V up to 50V.
  • Great for testing VDRs, TVSs and other types of voltage protection devices.
  • Selectable test currents: 2mA, 5mA, 10mA and 15mA.
  • Tiny duty cycle of test current to minimise heating of your component even when testing at 50V and 15mA.
  • Single Alkaline AAA battery (included).
  • Long battery life and regulated test conditions even when the battery voltage is as low as 1.0V.
  • Test voltages are below levels described in the Low Voltage Directive 2006/95/EC.
  • Continuous measurement display (updated 3 times per second).
  • Measurement "hold" function to hold displayed values even if component is removed.
  • Fitted gold plated crocodile (alligator) clips.
  • Very comprehensive printed user guide.
  • 24 month warranty.

Specification Summary at 20-25°C (68°-77F) unless otherwise specified.

Parameter

Min.

Typ.

Max.

Notes

Zener voltage range (Vz)

0.0V



50.0V



Nominal test currents (Iz)

2mA, 5mA, 10mA, 15mA



Set test current accuracy

±1% ±0.2mA



Zener voltage accuracy

±1% ±40mV



Zener voltage resolution

20mV



40mV



O/C test voltage (pulsed)





60V

1

S/C test current (pulsed)





35mA



Test current duty cycle

0.5%



1.5%

2

External abuse voltage





±50V



Slope resistance range






8000Ω
3200Ω
1600Ω
1000Ω

Iz=2mA
Iz=5mA
Iz=10mA
Iz=15mA

Displayed Slope resistance resolution








Iz=2mA
Iz=5mA
Iz=10mA
Iz=15mA

Slope resistance accuracy



±1% ±10Ω
±1% ±4Ω
±1% ±2Ω
±1% ±2Ω



Iz=2mA
Iz=5mA
Iz=10mA
Iz=15mA

Slope res. current span

(Iz-50%) to (Iz+50%)

3

Slope resistance measurement method

Differentiation of curve that fits:
(Iz-50%,Vz1), (Iz,Vz2) and (Iz+50%,Vz3)

3

Measurement rate



10Hz





Display update rate

1Hz

2Hz

3Hz



Auto-off period



60 seconds





Battery type

AAA Alkaline, NiMh or Lithium-Iron-Disulphide

Battery voltage range

0.9V



1.6V



Low battery warning

1.0V ± 0.05V



Dimensions (excl. leads)

103x70x20mm



Operating temperature

10°C



40°C



Notes:
1. 60V pulsed DC satisfies lower limit of 75V(DC) for Low Voltage Directive 2006/95/EC.
2. Duty cycle of test current designed to keep power dissipation of Zener under test to very low levels.


Photography (click to enlarge)


YouTube Videos


Other Downloads zen50-user-guide-en.pdf
  zen50-user-guide-de.pdf
  zen50-user-guide-it.pdf
  zen50-user-guide-fr.pdf
  zen50-datasheet-en.pdf

Dimensions per product (excluding leads) 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
Dimensions per product (packaged) 200 x 138 x 30 mm (7.9" x 5.5" x 1.2")

Weight per product (nett) 0.098kg (3.5oz)
Weight per product (packaged inc docs) 0.166kg (5.9oz)

Bulk order multiple 20, 80

Harmonisation / Commodity / Tariff Code 9030 8200 00 GB

Fundamental Materials Plastic, glass and metal.

Country of manufacture England (UK)

Certification CE, WEEE, ROHS

Keywords peakelec, peak electronic design, peak electronics, peak electronic, Peak Atlas, Atlas, Atlas ZEN, ZEN, Zen, Zener diode, zener, avalanche, avalanche diode, ZEN50, ZEN-50, ZEN 50, Zener tester, Zener analyser, Zener analyzer, Zener diode tester, Zener diode analyser, Zener diode analyzer, Avalanche diode tester, Avalanche diode analyser, Avalanche diode analyzer, VDR tester, TVS tester, LED tester, LED string tester, slope resistance, dynamic resistance, differential resistance, zener resistance, slope impedance, dynamic impedance, differential impedance, zener impedance

Suitable Accessories ATC55, ATC01
