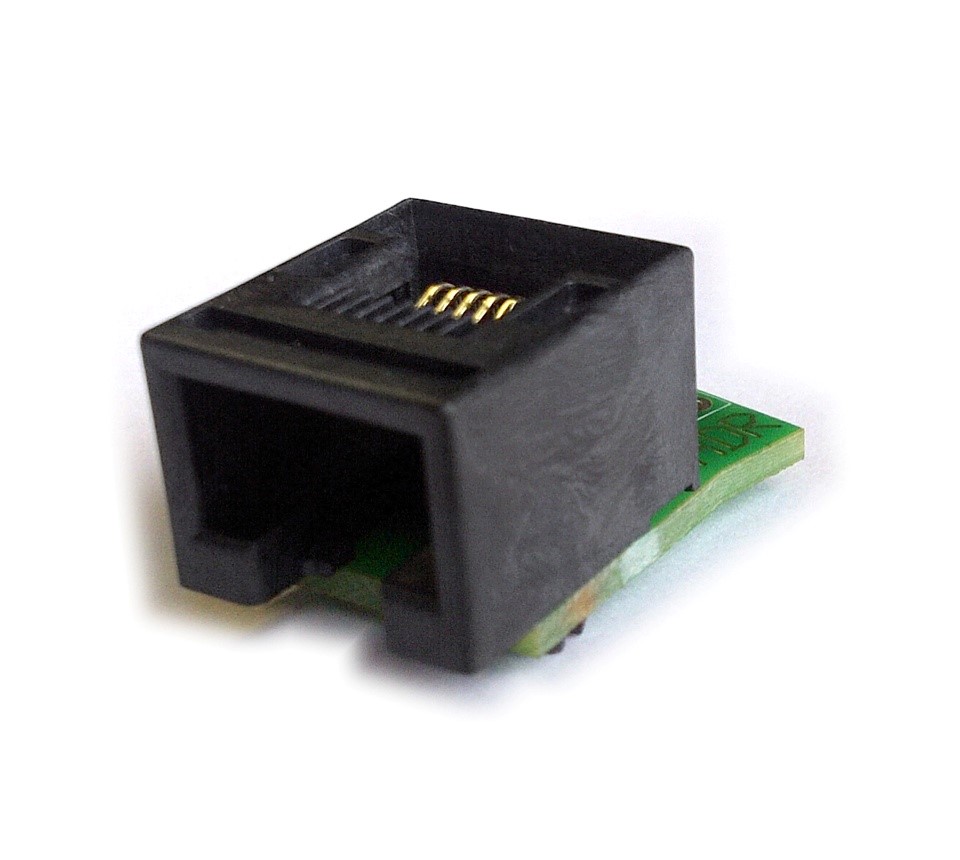

Replacement RJ45 socket assembly for the Atlas IT Network Cable Analyser (Model UTP05).
This RJ45 assembly is complete with its little printed circuit board, ready for soldering into the UTP05 instrument.
You can choose to fit it yourself or let us do the work for you. If you are doing it yourself then the old assembly needs careful removal first and any stray solder removing from the header pins (don't remove the header from your instrument). Only order this if you have excellent soldering skills. Instead, consider using our fitting option (if so, select the appropriate option above, complete the checkout process and send your instrument to us).
If you are sending your unit to us from outside the UK, it is vital that the package is clearly marked with:
"Inward processing relief - Item returning to factory."
Our address is:
Peak Electronic Design Ltd
Atlas House, 2 Kiln Lane
Harpur Hill Business Park
Buxton, Derbyshire
SK17 9JL, UK
We can normally complete work within 24 hours of receiving your instrument. Please include your order details with your instrument.
